Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 258TQO7012
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 657.225 mm 25.8750 in
Outer (D): 933.450 mm 36.7500 in
Width Over Cups (Wo ): 676.313 mm 26.6265 in
Width Over Cones (Wi): 676.275 mm 26.6250 in
Weight: 1540 kg 3400 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 22240 KN 5000000 lbs
K Factor: 1.76
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description

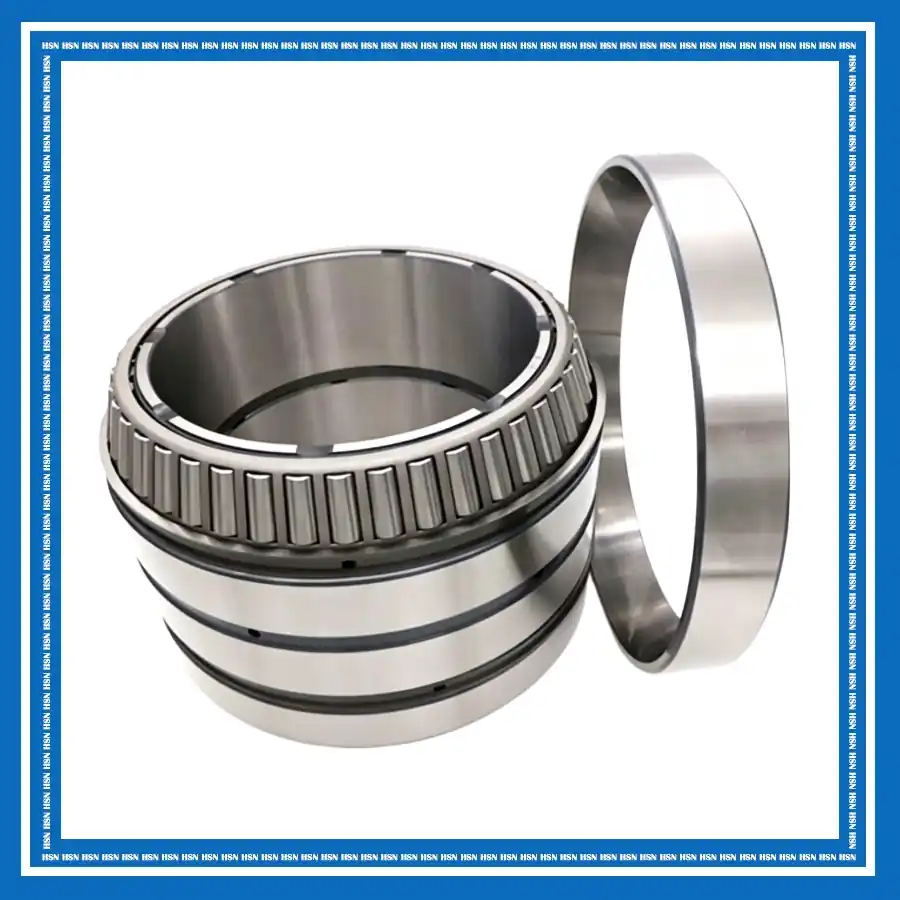

The ARB 258TQO7012 four-row tapered roller bearing consists of two double cone assemblies, a double cup in the center, two single cups, cup spacers, and a cone spacer. Its thin cross-section and increased width provide high load capacity while allowing larger roll neck diameters for improved roll strength. The four-row tapered roller design supports heavy radial loads and axial loads in both directions, while optional cone face notches and helical lubrication grooves help improve lubrication and reduce galling and heat damage. It is specially designed for work rolls, intermediate rolls, and backup rolls in steel, aluminum, and other rolling mill applications.
