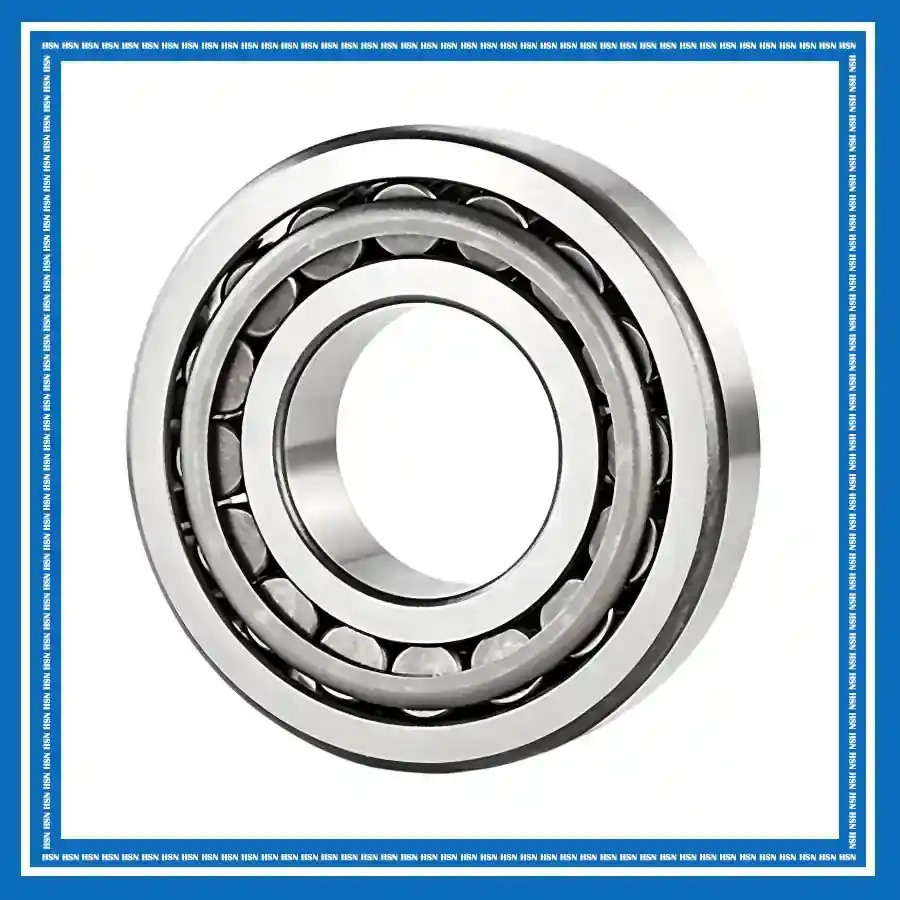

265TS842
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 265TS842
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 673.100 mm 26.5000 in
Outer (D): 793.750 mm 31.2500 in
Width (W): 66.675 mm 2.6250 in
Width Over Cups (Wo ): 49.213 mm 1.9375 in
Width Over Cones (Wi): 61.913 mm 2.4375 in
Weight: 53 kg 116 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1201 KN 270000 lbs
Static Capacity (C0) : 3914 KN 880000 lbs
K Factor: 1.62
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description
The American Roller Bearing 265TS842 single-row tapered roller bearing consists of an inner ring with tapered rollers and cage, together with a separate outer ring. Its tapered roller and raceway geometry provides high radial load capacity and supports axial loads in one direction, while the separable design simplifies mounting and adjustment. The rigid construction provides stable operation and reliable load distribution under demanding conditions. It is suitable for industrial gearboxes, mining and construction machinery, rolling mill equipment, agricultural machinery, wheel hubs, conveyor drives, and other heavy-duty transmission applications requiring combined radial and axial load support.
