267TDI755
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 267TDI755
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 679.450 mm 26.7500 in
Outer (D): 901.700 mm 35.5000 in
Width Over Cups (Wo ): 265.113 mm 10.4375 in
Width Over Cones (Wi): 265.113 mm 10.4375 in
Weight: 487 kg 1073 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 7517 KN 1690000 lbs
Static Capacity (C0) : 23131 KN 5200000 lbs
K Factor: 1.76
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description

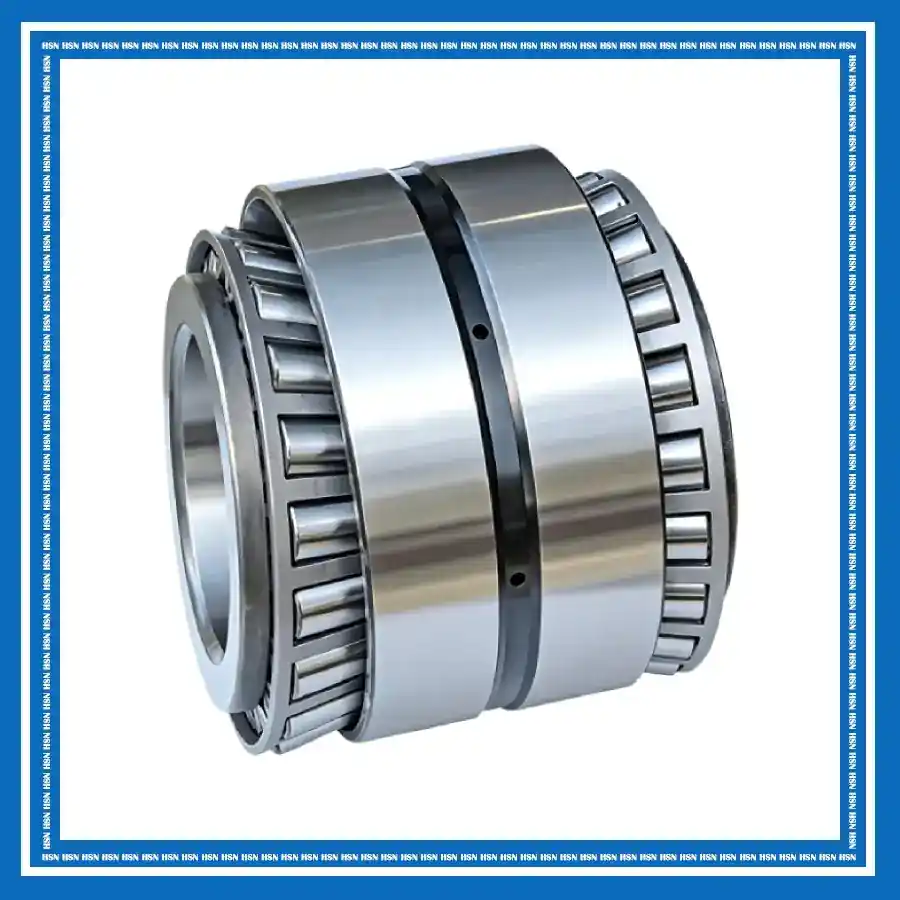

The American Roller Bearing 267TDI755 double-row tapered roller bearing consists of a double inner ring with two rows of tapered rollers and cages, two single outer rings, and an outer ring spacer. The spacer is used to set the required axial play and includes a lubrication groove and oil holes for lubricant distribution. The two-row tapered roller design provides high radial load capacity and supports axial loads in both directions, while its internal geometry makes it suitable for applications where some shaft deflection is expected under load. It is commonly used in industrial gearboxes, rolling equipment, heavy machinery, and other applications requiring high radial load capacity, bidirectional axial support, and adjustable axial play.
