2688 / 2631-B
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 2688 / 2631-B
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 26.987 mm 1.0625 in
Outer (D): 66.421 mm 2.6150 in
Width (T1): 8.725 mm 0.3435 in
Width (B): 25.433 mm 1.1810 in
Width (C): 19.050 mm 0.7500 in
Weight: 0.43 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 76600 N
Dynamic Radial Load Rating – 90M Revs (C90) : 19900 N
Dynamic Axial Rating – 90M Revs (Ca90): 8640 N
Static Radial Load Rating (C0): 81700 N
e Factor: 0.25
K Factor: 2.3
Y Factor: 2.36
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product description

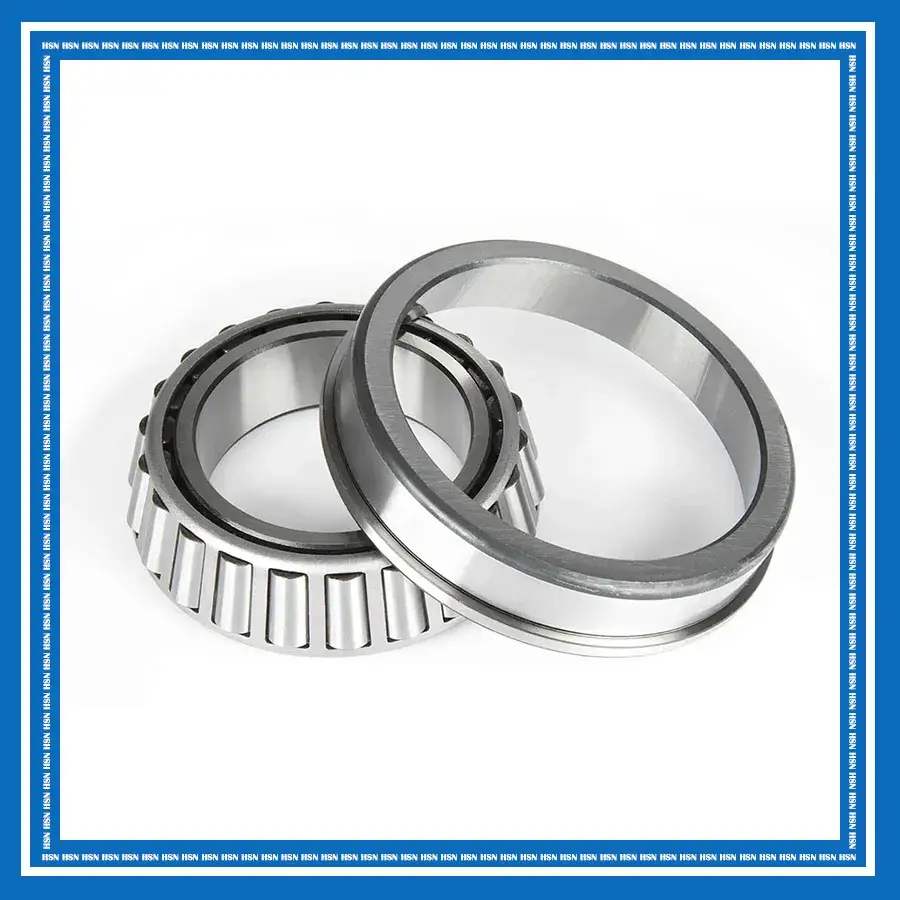

The 2688 / 2631-B Timken TSF tapered roller bearing features a single-row tapered roller bearing design with a flanged outer ring. The flange provides accurate axial positioning of the outer ring within the housing, while through-bored housing designs help achieve precise alignment of the bearing seats. This configuration simplifies installation and improves mounting stability in applications requiring reliable positioning and consistent operating performance.
The 2688 / 2631-B TSF bearing is widely used in industrial equipment, gearboxes, agricultural machinery, construction machinery, and other applications where accurate bearing location, reliable load support, and long service life are required.
