28980 / 28921-B
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 28980 / 28921-B
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 59.977 mm 2.3613 in
Outer (D): 100 mm 3.9370 in
Width (T1): 9.525 mm 0.3750 in
Width (B): 25.400 mm 1.2175 in
Width (C): 19.845 mm 0.7813 in
Weight: 0.79 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 106000 N
Dynamic Radial Load Rating – 90M Revs (C90) : 27500 N
Dynamic Axial Rating – 90M Revs (Ca90): 20000 N
Static Radial Load Rating (C0): 149000 N
e Factor: 0.43
K Factor: 1.37
Y Factor: 1.41
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product description

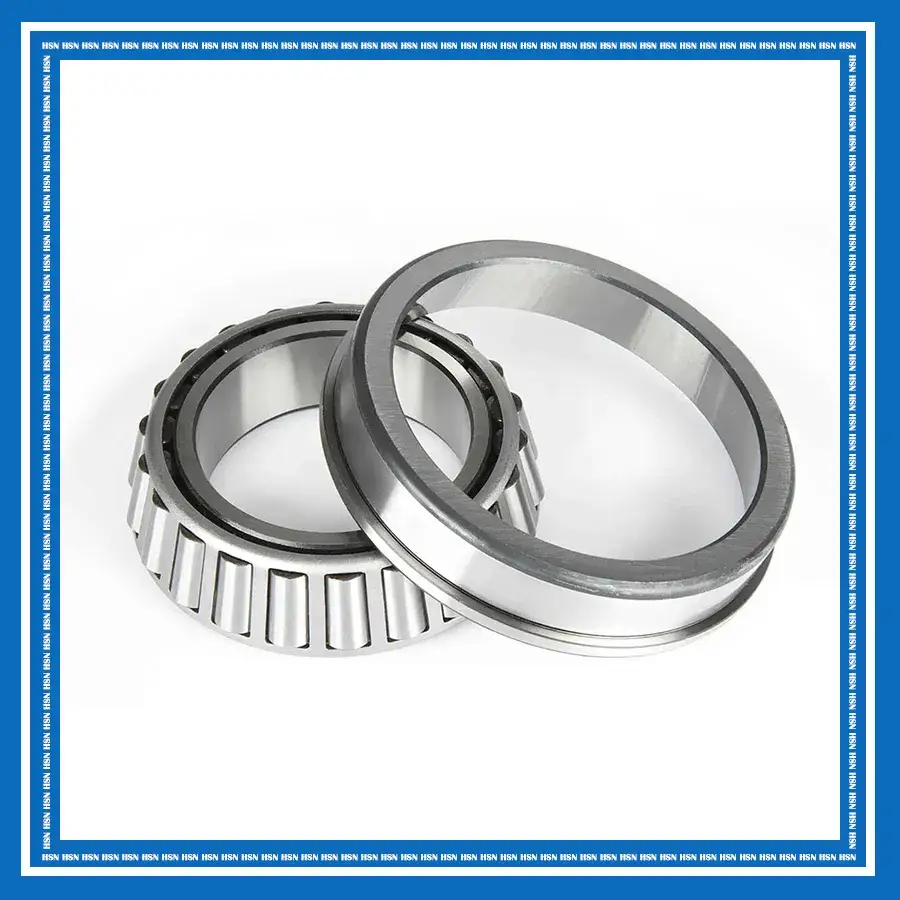

The 28980 / 28921-B Timken TSF tapered roller bearing features a single-row tapered roller bearing design with a flanged outer ring. The flange provides accurate axial positioning of the outer ring within the housing, while through-bored housing designs help achieve precise alignment of the bearing seats. This configuration simplifies installation and improves mounting stability in applications requiring reliable positioning and consistent operating performance.
The 28980 / 28921-B TSF bearing is widely used in industrial equipment, gearboxes, agricultural machinery, construction machinery, and other applications where accurate bearing location, reliable load support, and long service life are required.
