293/600EM
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 293/600EM
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 600 mm 23.6220 in
Outer (D): 900 mm 35.4331 in
Width (B): 180 mm 7.0866 in
Cone Outside Diameter (d1): 840 mm 33.0709 in
Cup Bore (D1): 720 mm 28.3465 in
Weight: 361.1 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 7380 KN
Static Radial Load Rating (Ca0): 32700 KN
Reference Speed Rating: 330 RPM
Limiting Speed Rating: 640 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Thrust Bearings
Product Description

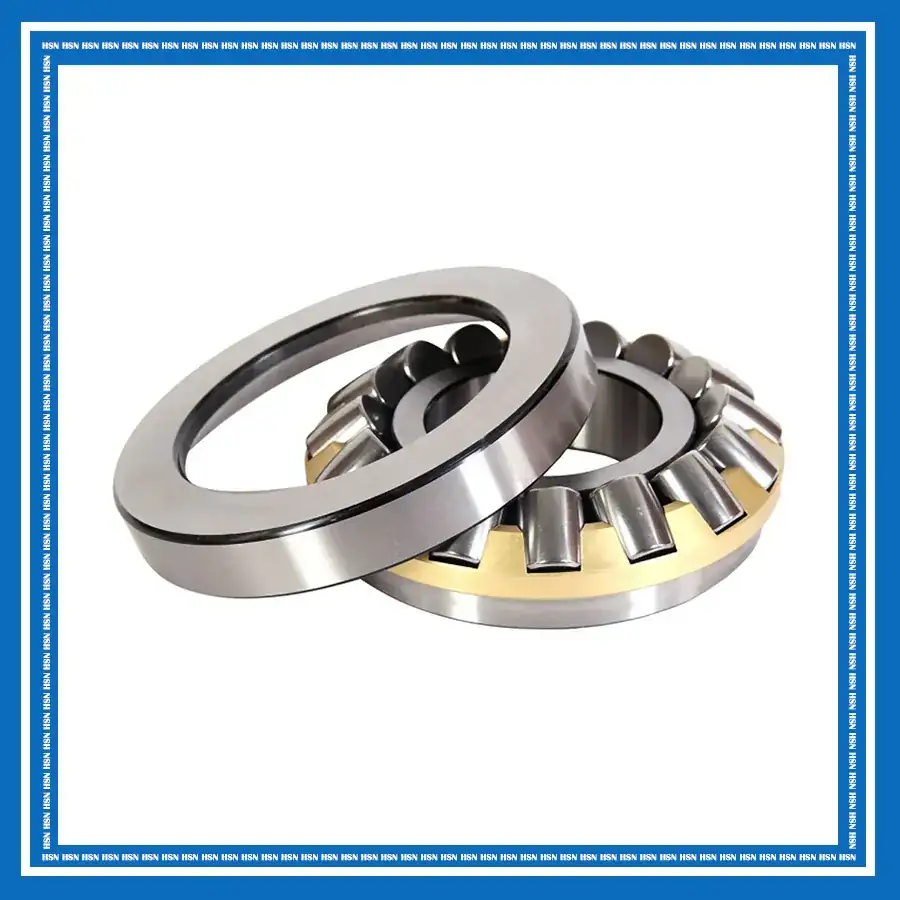

The 293/600EM Timken spherical roller thrust bearing consists of a shaft washer, a housing washer, asymmetrical spherical rollers, and a cage. The spherical raceway design provides high axial load capacity while also accommodating radial loads. Its self-aligning capability compensates for shaft deflection and misalignment, helping maintain reliable performance under heavy loads, shock loads, and demanding operating conditions.
The 293/600EM bearing is widely used in gear drives, pumps, crushers, extruders, rolling mills, mining equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring high axial load capacity, misalignment compensation, shock resistance, and reliable operation under continuous or severe working conditions.
