Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 29392EM
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 460 mm 18.1102 in
Outer (D): 710 mm 27.9528 in
Width (B): 150 mm 5.9055 in
Cone Outside Diameter (d1): 660 mm 25.9843 in
Cup Bore (D1): 567 mm 22.3228 in
Weight: 193.6 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 4820 KN
Static Radial Load Rating (Ca0): 20200 KN
Reference Speed Rating: 450 RPM
Limiting Speed Rating: 820 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Thrust Bearings
Product Description

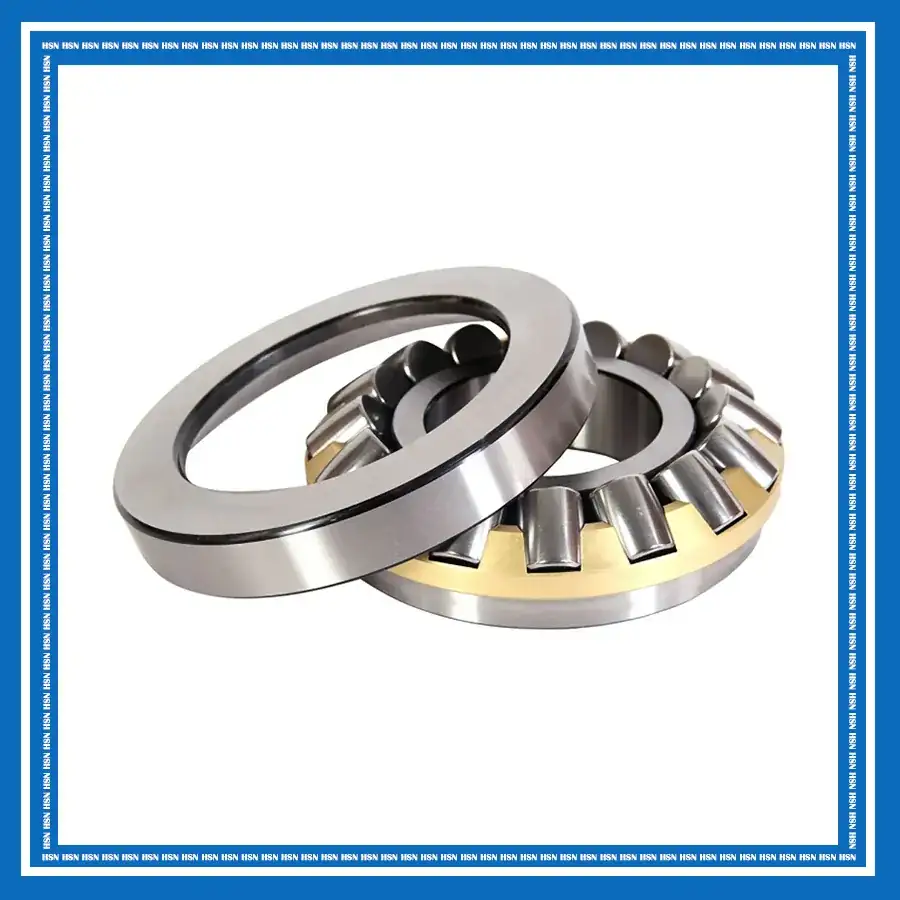

The 29392EM Timken spherical roller thrust bearing consists of a shaft washer, a housing washer, asymmetrical spherical rollers, and a cage. The spherical raceway design provides high axial load capacity while also accommodating radial loads. Its self-aligning capability compensates for shaft deflection and misalignment, helping maintain reliable performance under heavy loads, shock loads, and demanding operating conditions.
The 29392EM bearing is widely used in gear drives, pumps, crushers, extruders, rolling mills, mining equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring high axial load capacity, misalignment compensation, shock resistance, and reliable operation under continuous or severe working conditions.
