29436EJ
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 29436EJ
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 180 mm 7.0866 in
Outer (D): 360 mm 14.1732 in
Width (B): 109 mm 4.2913 in
Cone Outside Diameter (d1): 315.9 mm 12.4370 in
Cup Bore (D1): 250 mm 9.8425 in
Weight: 47.5 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 2660 KN
Static Radial Load Rating (Ca0): 7090 KN
Reference Speed Rating: 990 RPM
Limiting Speed Rating: 1770 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Thrust Bearings
Product Description

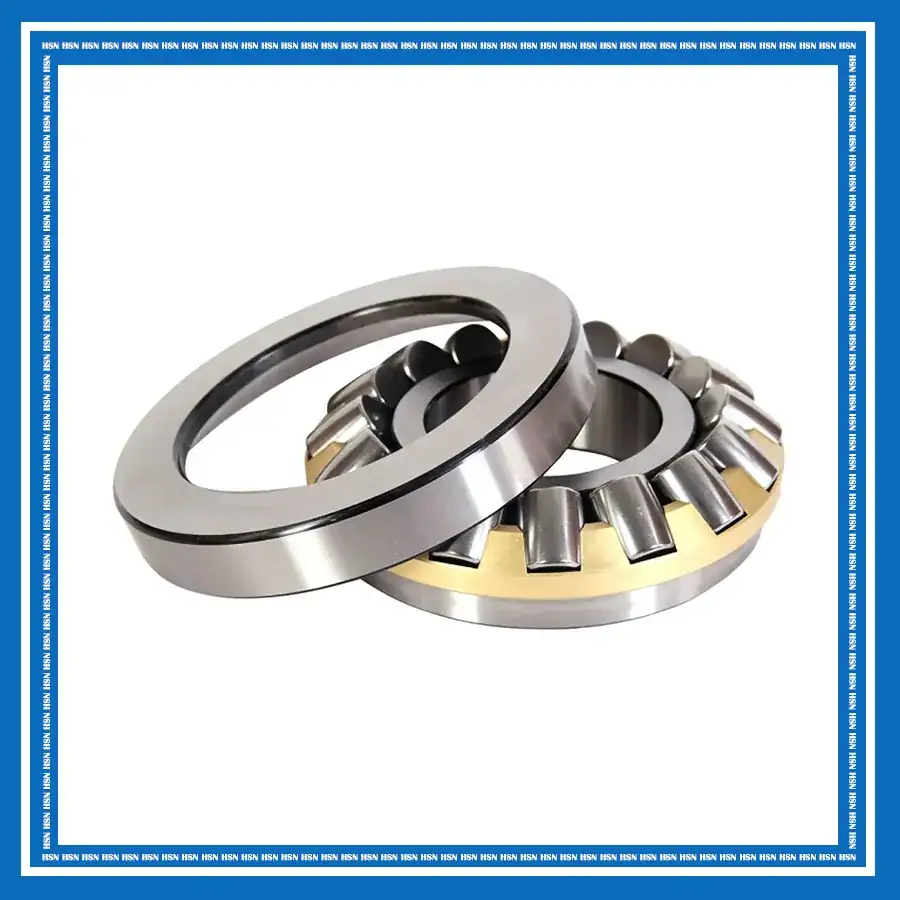

The 29436EJ Timken spherical roller thrust bearing consists of a shaft washer, a housing washer, asymmetrical spherical rollers, and a cage. The spherical raceway design provides high axial load capacity while also accommodating radial loads. Its self-aligning capability compensates for shaft deflection and misalignment, helping maintain reliable performance under heavy loads, shock loads, and demanding operating conditions.
The 29436EJ bearing is widely used in gear drives, pumps, crushers, extruders, rolling mills, mining equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring high axial load capacity, misalignment compensation, shock resistance, and reliable operation under continuous or severe working conditions.
