Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 300TDI7015
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (B): 762.000 mm 30.0000 in
Outer (D): 1079.500 mm 42.5000 in
Width Over Cups (Wo ): 381.000 mm 15.0000 in
Width Over Cones (Wi): 381.000 mm 15.0000 in
Weight: 1150 kg 2536 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 13122 KN 2950000 lbs
Static Capacity (C0) : 27668 KN 6220000 lbs
K Factor: 1.76
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Bearings Guide
Product Description

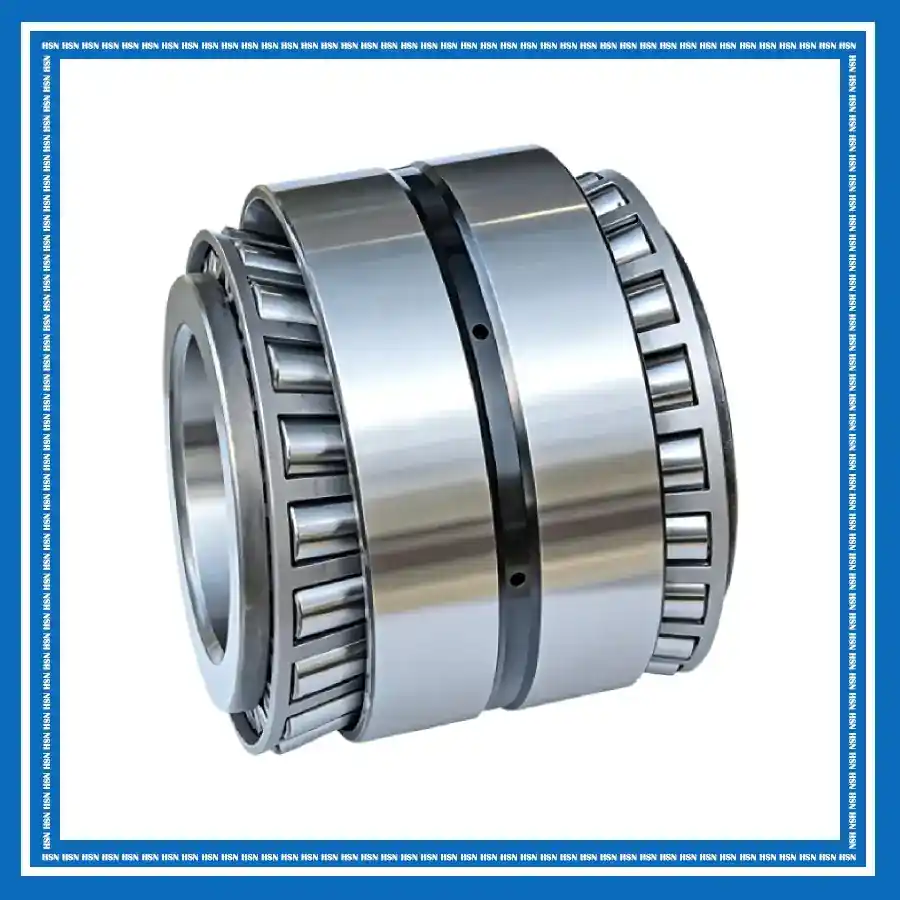

The American Roller Bearing 300TDI7015 double-row tapered roller bearing consists of a double inner ring with two rows of tapered rollers and cages, two single outer rings, and an outer ring spacer. The spacer is used to set the required axial play and includes a lubrication groove and oil holes for lubricant distribution. The two-row tapered roller design provides high radial load capacity and supports axial loads in both directions, while its internal geometry makes it suitable for applications where some shaft deflection is expected under load. It is commonly used in industrial gearboxes, rolling equipment, heavy machinery, and other applications requiring high radial load capacity, bidirectional axial support, and adjustable axial play.
