400RX2123
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 400RX2123
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 400.000 mm 15.7480 in
Outer (D): 560.000 mm 22.0472 in
Width (B): 410.000 mm 16.1417 in
Width (C): 410.000 mm 16.1417 in
DUR/DOR (F/E): 445.000 mm 17.5197 in
Weight: 319.90 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C1) : 7460 KN
Static Radial Load Rating (C0): 16440 KN
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Cylindrical Roller Bearings Guide
Product Description

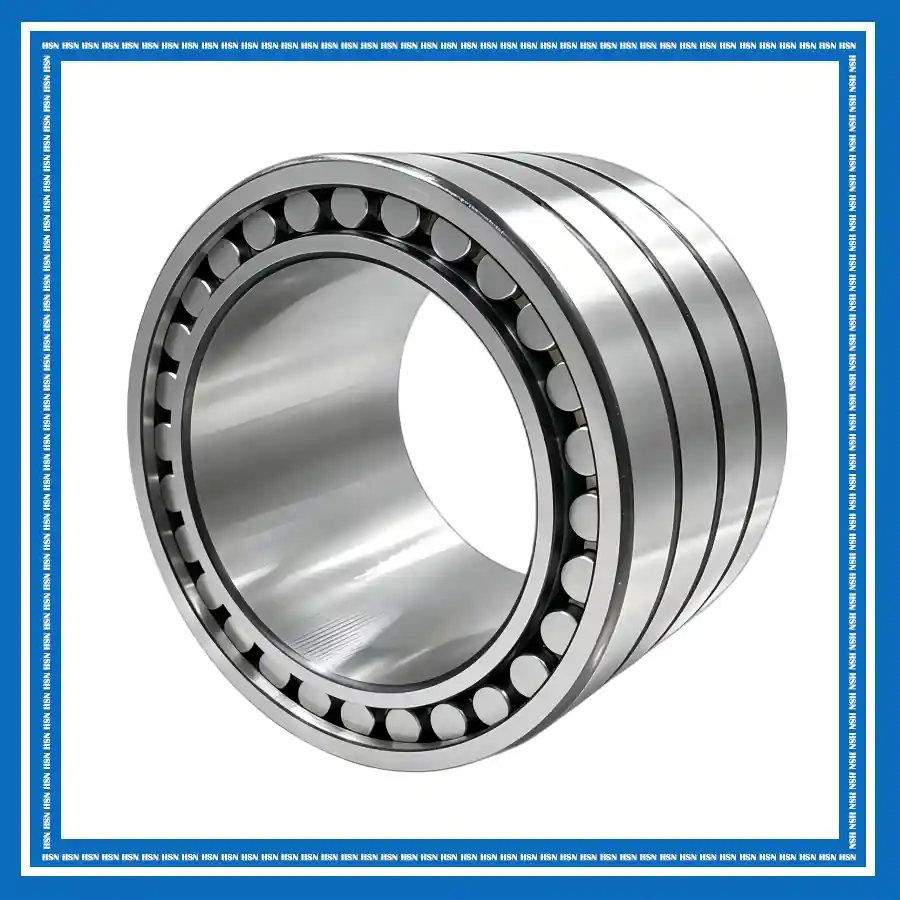

The 400RX2123 Timken four-row cylindrical roller bearing consists of inner and outer rings, four rows of cylindrical rollers, and cages. The four-row design provides high radial load capacity, excellent rigidity, and stable load distribution, making it suitable for heavy loads and continuous operation. These bearings are primarily used in rolling mill roll-neck applications, including hot rolling mills, cold rolling mills, and other steel rolling equipment, providing reliable support for work rolls and backup rolls under demanding rolling conditions.
