460RJ30
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ Torrington/ OEM
Bearing Number: 460RJ30
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 460 mm 18.1102 in
Outer Diameter (D): 680 mm 26.7717 in
Width (C): 163 mm 6.4173 in
Weight: 215.6 kg 475.2 lbs
Data from Torrington (medias)
Dynamic Capacity (C) : 4000000 N 900000 lbs
Static Capacity (Co) : 8000000 N 1800000 lbs
Limiting Speed (approx.) : 530 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Torrington Cylindrical Roller Bearings Guide
Product Description

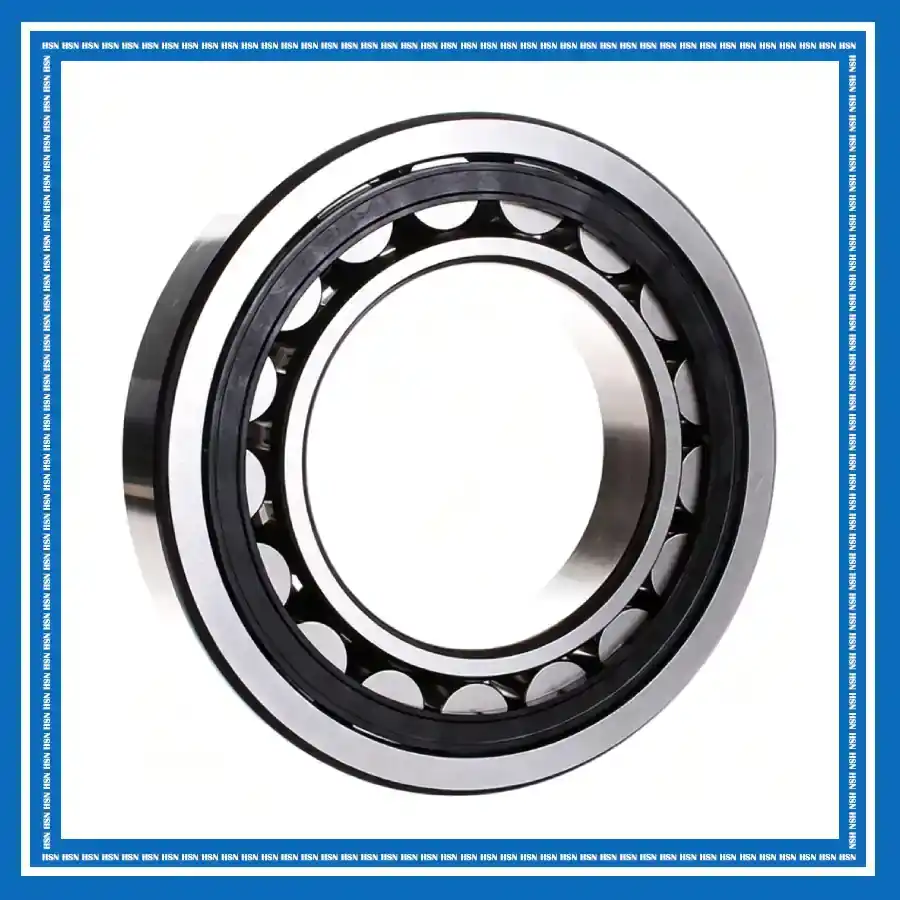

The Torrington 460RJ30 cylindrical roller bearing consists of a double-ribbed outer ring, a single-ribbed inner ring, cylindrical rollers, and a cage. This design provides high radial load capacity while supporting light axial loads in one direction. Its robust roller arrangement provides reliable load distribution and stable operation under demanding conditions. It is suitable for industrial gearboxes, electric motors, pumps, compressors, conveyors, material handling equipment, and other heavy-duty machinery requiring high radial load capacity and reliable shaft support.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
