541ABD731
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 541ABD731
Category: Angular Contact Thrust Ball Bearings
1

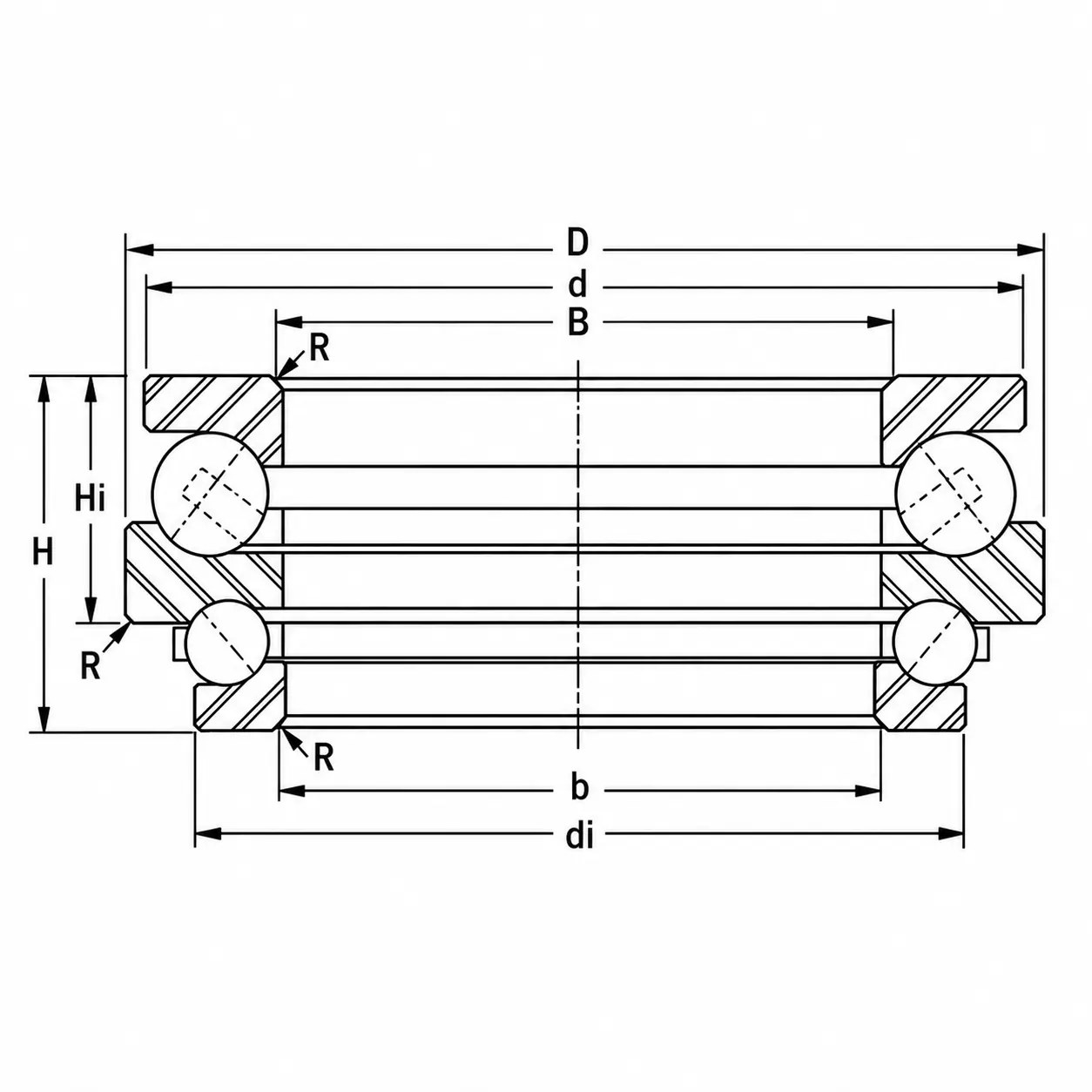

Weight and Dimensions
Top Plate Bore (B): 1374.775 mm 54.125 in
Bottom Plate Bore (b): 1371.6 mm 54 in
Outer Diameter (D): 1597.025 mm 62.875 in
Stack Height (H): 247.65 mm 9.75 in
Weight: 655 kg 1443 lbs
Data from ARB (medias)
Upper Bearing Dynamic Capacity (Ca) : 3559 KN 800000 lbs
Upper Bearing Static Capacity (C0a): 17793 KN 4000000 lbs
Lower Bearing Dynamic Capacity (Ca) : 2224 KN 500000 lbs
Lower Bearing Static Capacity (C0a): 2500000 KN 11121 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Angular Contact Thrust Ball Bearings Guide
Product Description
The ARB 541ABD731 double acting angular contact thrust ball bearing consists of top and bottom angular contact plates, two sets of steel balls with brass cages, and an intermediate plate. Its two ball paths and approximately 50° contact angle provide high thrust load capacity and rigidity, allowing the bearing to support thrust loads in both directions while maintaining stable shaft alignment under demanding loads.
The ARB 541ABD731 bearing is mainly suitable for vertical shaft arrangements, machine tool indexing tables, oilfield rotary tables, and other heavy-duty rotating equipment requiring bidirectional thrust support. Its high thrust load capacity, rigid construction, and reliable centering capability provide stable support for large vertical shafts and precision rotating systems.
