560RF30
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ Torrington/ OEM
Bearing Number: 560RF30
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 560 mm 22.0472 in
Outer Diameter (D): 820 mm 32.2835 in
Width (C): 195 mm 7.6772 in
Weight: 369.7 kg 815 lbs
Data from Torrington (medias)
Dynamic Capacity (C) : 5500000 N 1250000 lbs
Static Capacity (Co) : 11400000 N 2550000 lbs
Limiting Speed (approx.) : 430 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Torrington Cylindrical Roller Bearings Guide
Product Description

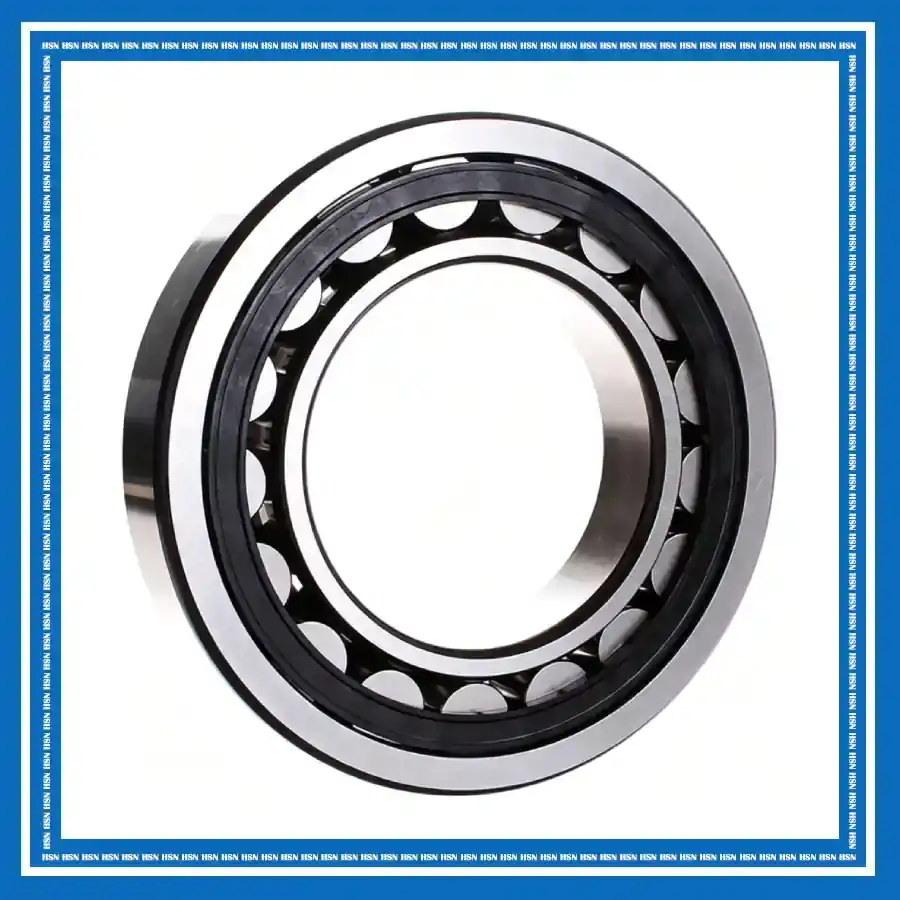

The Torrington 560RF30 cylindrical roller bearing consists of a double-ribbed inner ring, a single-ribbed outer ring, cylindrical rollers, and a cage. This design provides high radial load capacity while supporting light axial loads in one direction. Its robust roller arrangement provides reliable load distribution and stable operation under demanding conditions. It is suitable for industrial gearboxes, electric motors, pumps, compressors, conveyors, material handling equipment, and other heavy-duty machinery requiring high radial load capacity and reliable shaft support.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
