61817-2RZ-Y
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 61817-2RZ-Y
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 85 mm
Outer (D): 110 mm
Width (B): 13 mm
Weight: 0.27 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 20400 N
Basic Static Load Rating, Radial (C0r): 19800 N
Fatigue Load Limit, Radial (Cur): 1130 N
Limiting Speed (nG): 7200 r/min
Reference Speed (nϑr): 4900 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

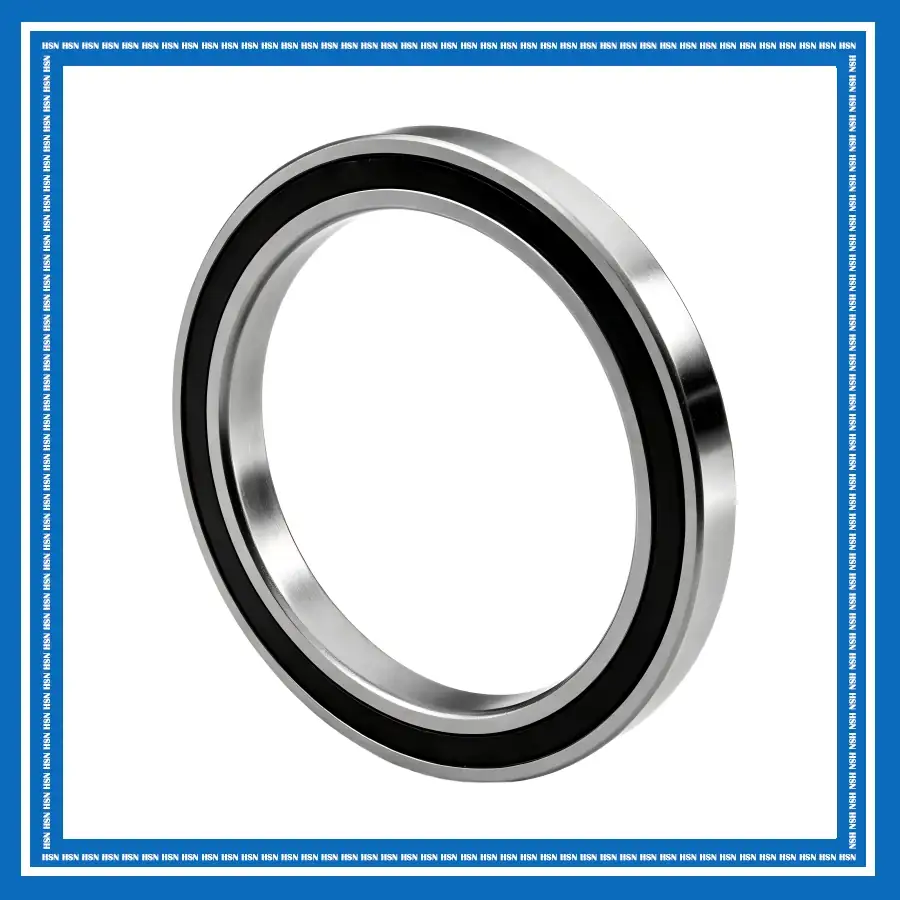

The 61817-2RZ-Y Timken thin-section deep groove ball bearing consists of an inner ring, an outer ring, balls, a cage, and two non-contact seals. Its thin radial cross section saves installation space, while the non-contact seals help retain lubricant and protect against contaminants with minimal friction. This design provides smooth operation and high-speed performance while supporting radial and bidirectional axial loads.
The 61817-2RZ-Y bearing is widely used in electric motors, fans, precision equipment, machine tools, automation systems, and compact industrial machinery. It is particularly suitable for applications requiring limited installation space, low friction, high-speed operation, lubricant retention, and contamination protection.It is particularly suitable for applications requiring high-speed operation, reliable sealing, grease retention, and protection against water and dust.
