61900-2Z
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 61900-2Z
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 10 mm
Outer (D): 22 mm
Width (B): 6 mm
Weight: 0.01 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 2850 N
Basic Static Load Rating, Radial (C0r): 1270 N
Fatigue Load Limit, Radial (Cur): 65 N
Limiting Speed (nG): 41000 r/min
Reference Speed (nϑr): 27000 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

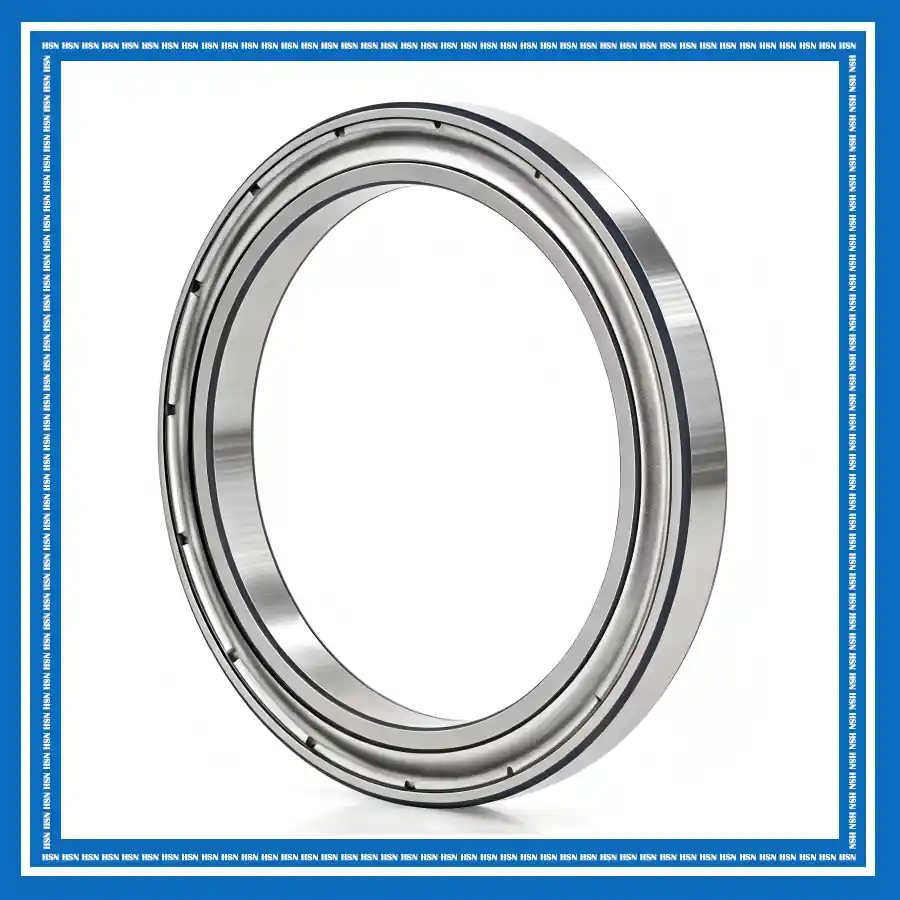

The 61900-2Z FAG thin-section deep groove ball bearing consists of an inner ring, an outer ring, balls, a cage, and two metal shields. Its thin radial cross section saves installation space, while the double shields help retain lubricant and protect against dust and contaminants. The bearing provides low friction, smooth operation, and high-speed performance while supporting radial and bidirectional axial loads.
The 61900-2Z bearing is widely used in electric motors, precision instruments, machine tools, fans, automation equipment, and compact industrial machinery. It is particularly suitable for applications requiring limited installation space, low friction, high-speed operation, and reliable contamination protection.
