7313-B-XL-TVP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 7313-B-XL-TVP
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 65 mm
Outer (D): 140 mm
Width (B): 33 mm
Weight: 2.12 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 110000 N
Basic Static Load Rating, Radial (C0r): 82000 N
Fatigue Load Limit, Radial (Cur): 5400 N
Limiting Speed (nG): 5900 rpm
Reference Speed (nϑr): 5000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

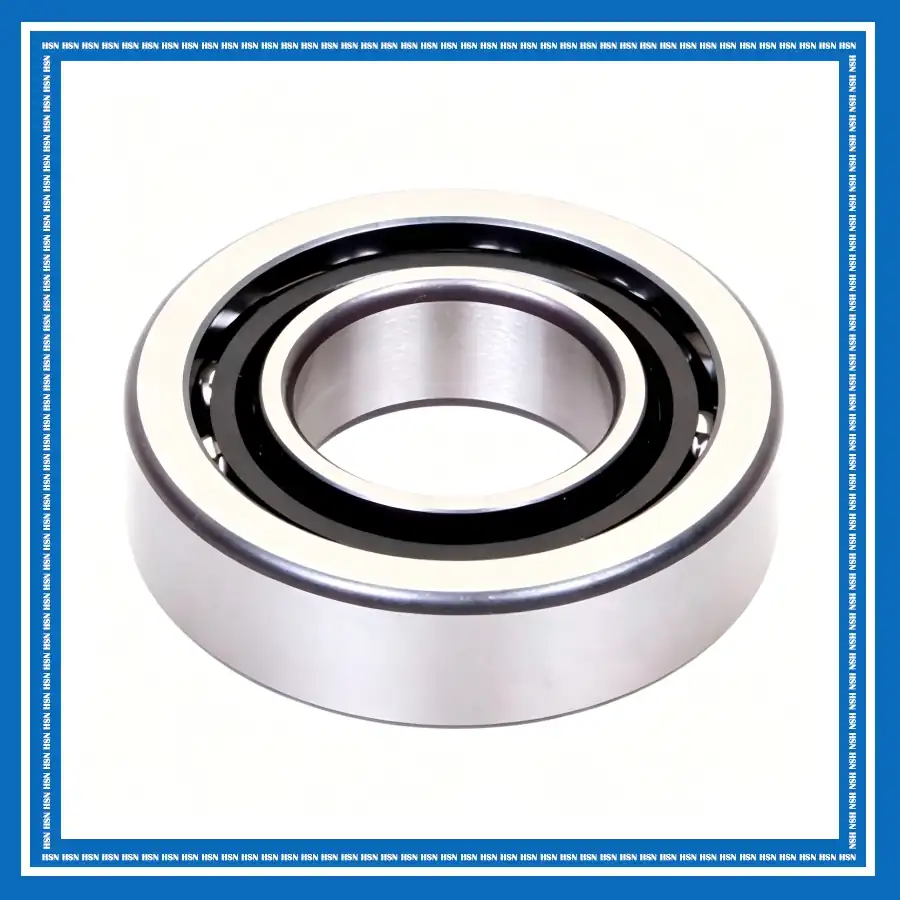

The 7313-B-XL-TVP FAG angular contact ball bearing consists of an inner ring, an outer ring, balls, and a solid cage made from glass-fiber reinforced polyamide PA66. The 40° contact angle provides high axial load capacity while supporting combined radial and axial loads. The X-life design improves load-carrying performance, while the lightweight TVP cage provides reliable ball guidance, low friction, and smooth operation.
The 7313-B-XL-TVP bearing is widely used in compressors, textile machinery, fluid handling equipment, and high-speed industrial drives. It is particularly suitable for applications requiring combined load support, low-friction operation, reliable axial guidance, and stable performance at higher speeds.
