Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 7320-B-XL-JP
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 100 mm
Outer (D): 215 mm
Width (B): 47 mm
Weight: 7.38 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 214000 N
Basic Static Load Rating, Radial (C0r): 197000 N
Fatigue Load Limit, Radial (Cur): 10600 N
Limiting Speed (nG): 3700 rpm
Reference Speed (nϑr): 3550 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

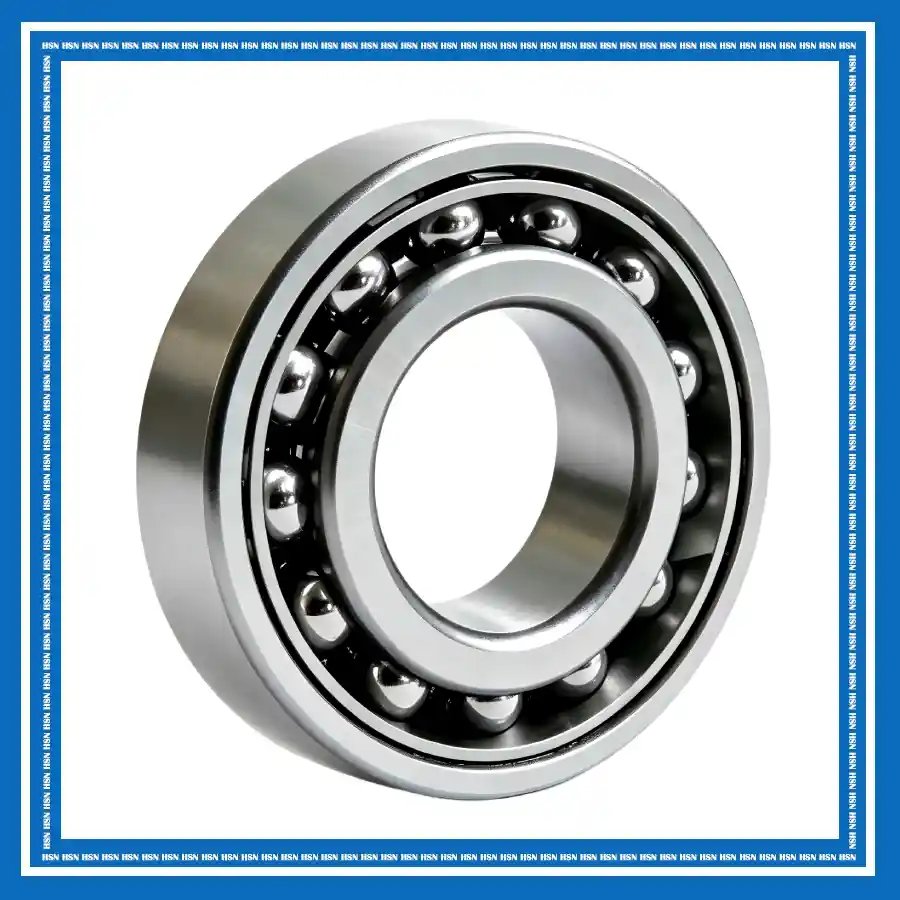

The 7320-B-XL-JP FAG angular contact ball bearing consists of an inner ring, an outer ring, balls, and a sheet steel cage. The 40° contact angle provides high axial load capacity while supporting combined radial and axial loads. The X-life design improves load-carrying performance and service life, while the robust steel cage provides reliable ball guidance and stable operation.
The 7320-B-XL-JP bearing is widely used in industrial gearboxes, hydraulic pumps, industrial fans, and power transmission equipment. It is particularly suitable for applications requiring high axial load capacity, combined load support, robust cage performance, and reliable continuous operation.
