89312-TV
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 89312-TV
Category: Cylindrical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 60 mm
Outer (D): 110 mm
Width (T): 30 mm
Weight: 1.26 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Axial Ca: 197000 N
Basic Static Load Rating, Axial (C0a): 670000 N
Fatigue Load Limit, Axial (Cua): 58000 N
Limiting Speed (nG): 3400 r/min
Reference Speed (nϑr): 1350 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Roller Thrust Bearings
Product Description

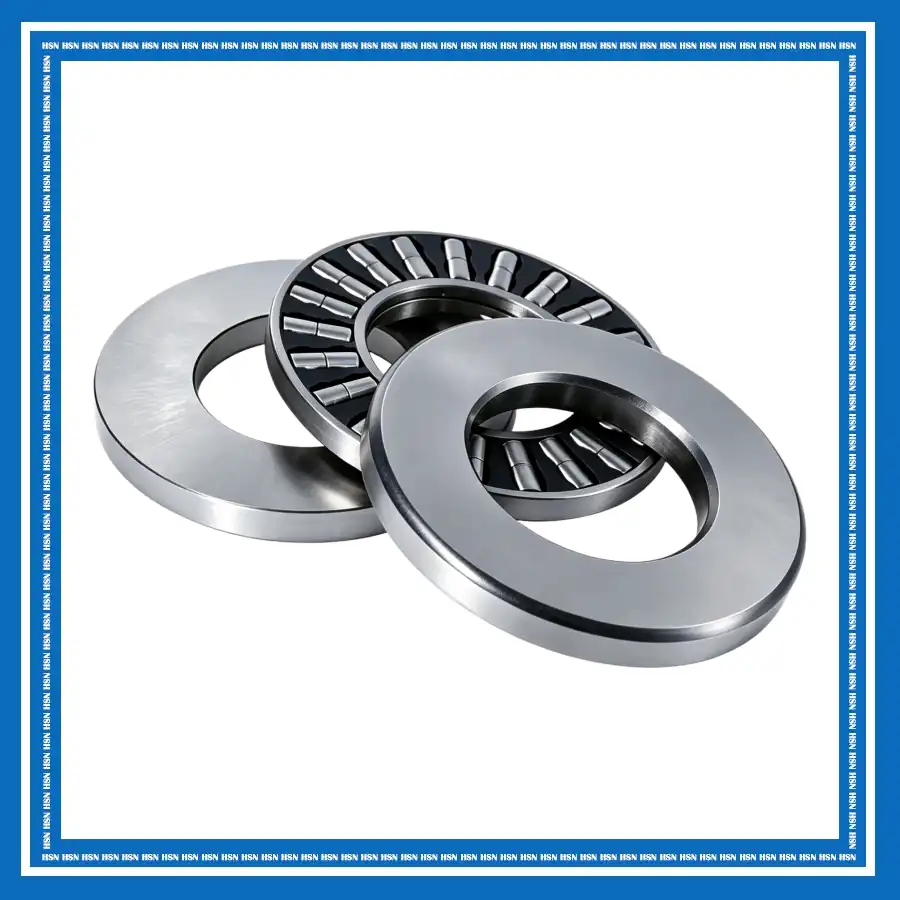

The 89312-TV thrust cylindrical roller bearing consists of a shaft washer, housing washer, cylindrical rollers, and a glass-fibre reinforced polyamide cage. The TV cage features lightweight construction, low friction, and good wear resistance while providing stable roller guidance. Its separable design allows the washers and roller and cage assembly to be mounted independently, simplifying installation and maintenance. The cylindrical rollers provide a large contact area with the raceways, enabling high axial load capacity and high rigidity under heavy loads.
The 89312-TV bearing is suitable for industrial transmissions, machine tools, material handling equipment, gearboxes, pumps, and general mechanical engineering. Its compact design, high axial load capacity, and TV cage provide reliable axial support and smooth operation in demanding industrial applications.
