AD42032DK
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: AD42032DK
Reference Number: 577938
Reference Number: 315523
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (B): 485.000 mm 19.0945 in
Ref. bore (B1): 530.000 mm 20.8661 in
Outer (D): 740.000 mm 29.1339 in
Width (W): 540.000 mm 21.2598 in
Ref. dia (F): 572.300 mm 22.5315 in
Weight: 820 kg 1808 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 11200 KN 2518000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

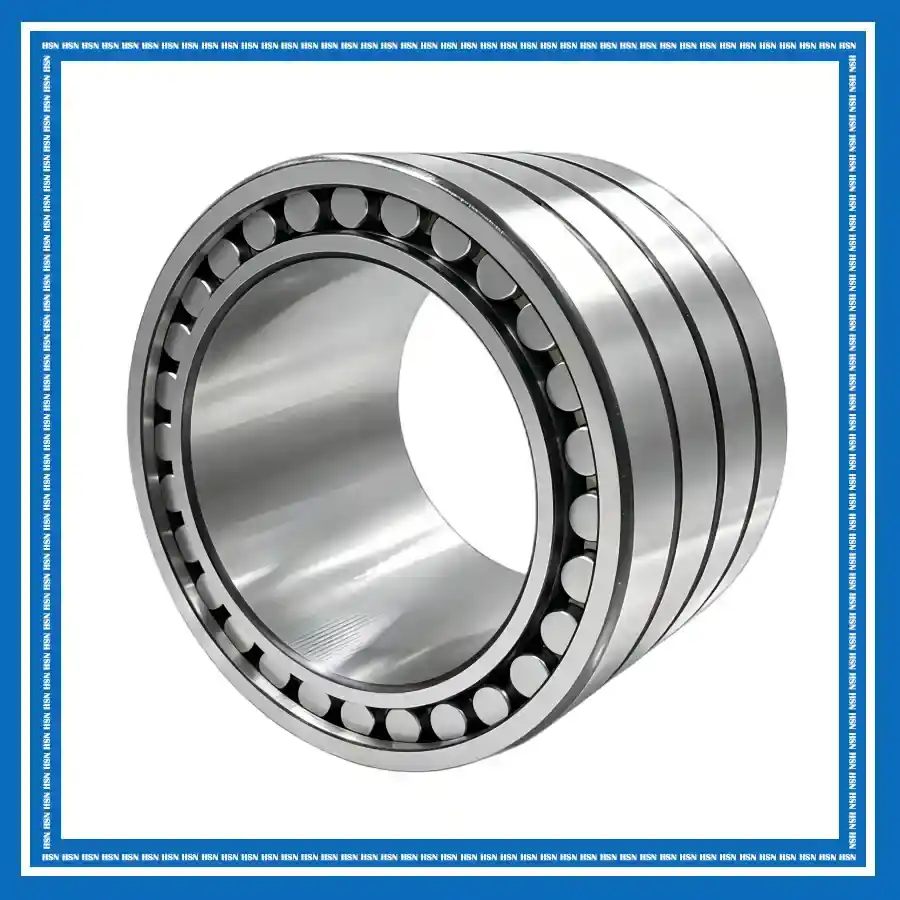

The American Roller Bearing AD42032DK four-row cylindrical roller bearing consists of inner and outer rings, four rows of cylindrical rollers, and robust cage assemblies. Its 1:12 tapered bore provides secure mounting on a matching tapered roll neck, while the four-row roller arrangement delivers high radial load capacity and rigidity under heavy loads. The precision internal design helps distribute loads evenly across the roller rows for stable and reliable operation. It is primarily designed for rolling mill applications, including work rolls and backup rolls in steel, aluminum, and other metal processing equipment requiring reliable radial support under heavy rolling loads.
