C30/600-XL-K-M

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: C30/600-XL-K-M

Category: Toroidal Roller Bearings

1

Weight and Dimensions

Bore (d): 600 mm

Outer (D): 870 mm

Width (B): 200 mm

Weight: 373 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 6300000 N

Basic Static Load Rating, Radial (C_0r): 12200000 N

Fatigue Load Limit, Radial (C_ur): 970000 N

Limiting Speed (n_G): 620 r/min

Reference Speed (n_ϑr): 275 r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Toroidal Roller Bearings Guide

Product Description

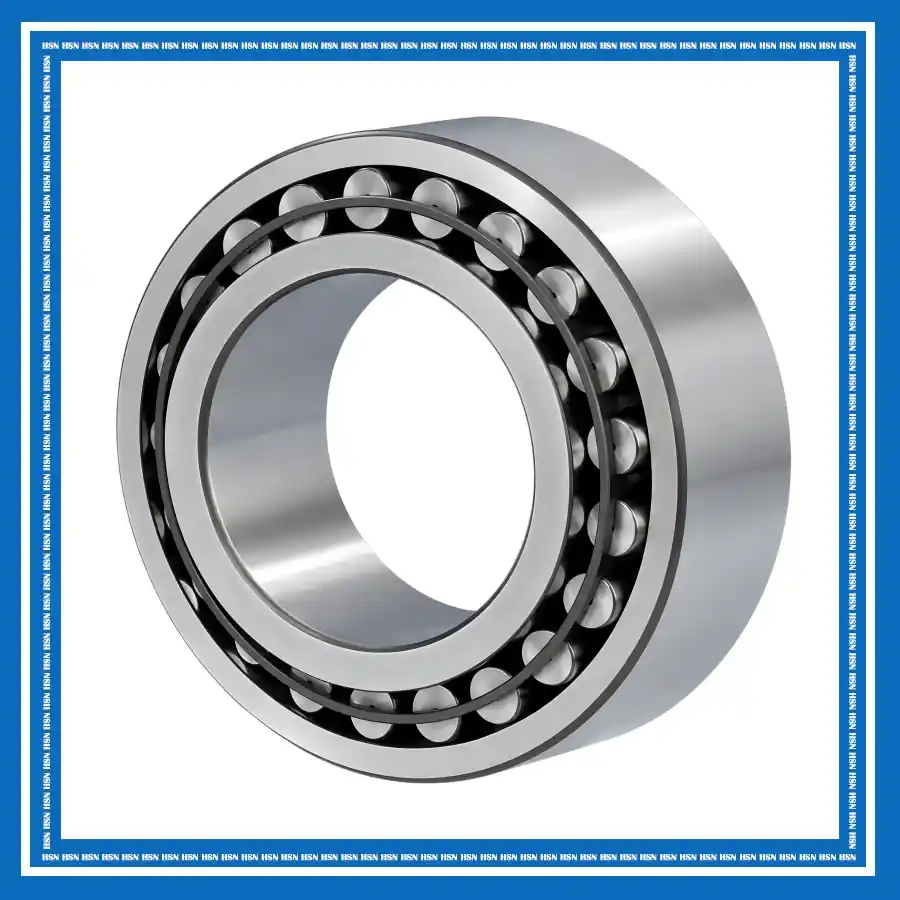

The C30/600-XL-K-M FAG toroidal roller bearing consists of an inner ring, outer ring, a single row of long crowned rollers, and a brass cage. Its matched roller and raceway profiles provide very high radial load capacity and self-aligning capability, while allowing axial displacement within the bearing. This design accommodates shaft deflection, misalignment, and thermal expansion with low friction. In addition, X-life improves operating performance and service life, while the K tapered bore has a 1:12 taper. The M brass cage provides robust roller guidance and high stability under demanding operating conditions.

The C30/600-XL-K-M bearing is suitable for paper machinery, steel and metallurgy, mining and cement, power generation, material handling, and heavy industrial equipment. Its very high radial load capacity and self-aligning capability support heavy radial loads and shaft deflection. Meanwhile, its internal axial displacement capability compensates for thermal shaft expansion, making it suitable for applications involving heavy radial loads, misalignment, and thermal expansion.
