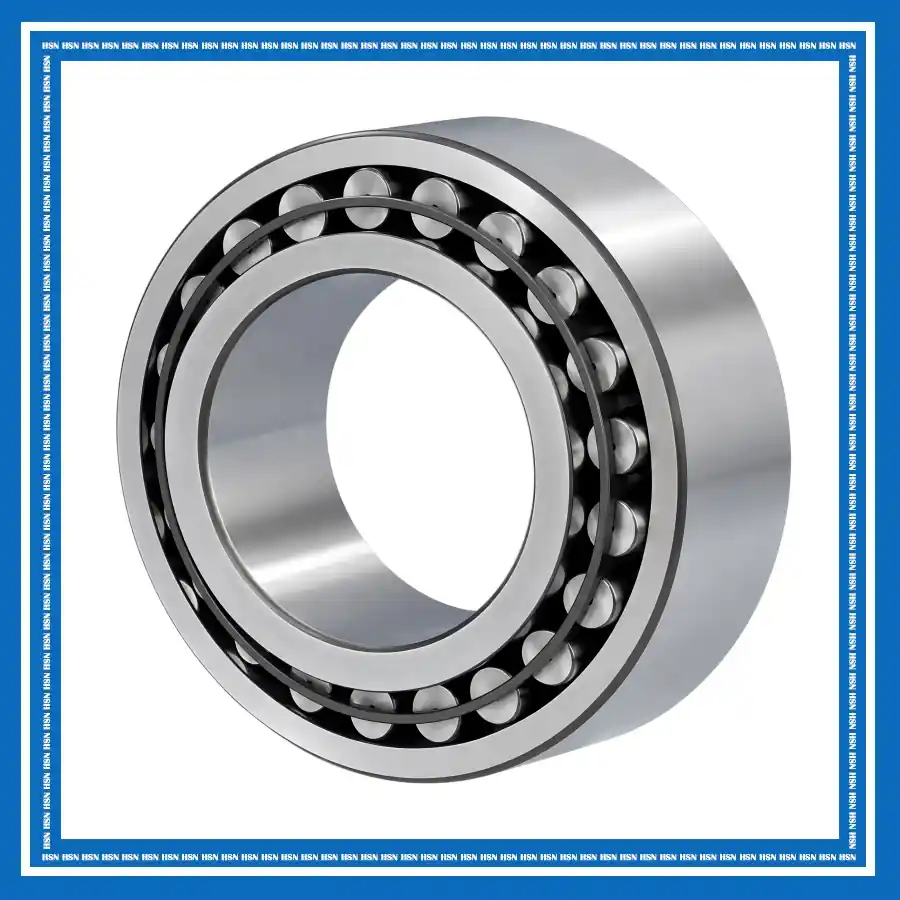

C4132-XL-V

Specifications

Availability: 100 PCS

Brand: HSN/ FAG/ OEM

Bearing Number: C4132-XL-V

Category: Toroidal Roller Bearings

1

Weight and Dimensions

Bore (d): 160 mm

Outer (D): 270 mm

Width (B): 109 mm

Weight: 24.9 kg

Data from Schaeffler (medias)

Basic Dynamic Load Rating, Radial C_r: 1470000 N

Basic Static Load Rating, Radial (C_0r): 2200000 N

Fatigue Load Limit, Radial (C_ur): 211000 N

Limiting Speed (n_G): 630 r/min

Reference Speed (n_ϑr): – r/min

Product Properties

Precision: P0, P6, P5

Hardness: HRC58-62

Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.

Cage Material: Brass, Steel

Certificate: ISO9001:2015

1

Downloads & Links

FAG Toroidal Roller Bearings Guide

Product Description

The C4132-XL-V FAG toroidal roller bearing consists of an inner ring, outer ring, and a full complement of long crowned rollers without a cage. The V full complement design increases the number of rollers, providing very high radial load capacity and high rigidity. Its specially matched roller and raceway profiles provide self-aligning capability while allowing axial displacement within the bearing, helping accommodate shaft deflection, misalignment, and thermal expansion. In addition, X-life improves operating performance and service life.

The C4132-XL-V bearing is suitable for paper machinery, steel and metallurgy, mining and cement, power generation, material handling, and heavy industrial equipment. Its very high radial load capacity and self-aligning capability make it suitable for heavy radial loads and shaft deflection. Meanwhile, its internal axial displacement capability helps compensate for thermal expansion in long-shaft and heavy-duty bearing arrangements.
