H31/1500-HG
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: H31/1500-HG
Category: Adapter Sleeves
1
Weight and Dimensions
Bore Diameter (d1): 1400 mm
Thread (G): Tr1500×8
Sleeve Length (B1): 755 mm
Weight: 2230 kg
Data from Schaeffler (medias)
Bore Diameter Bearing (d): 1500 mm
Outside Diameter Nut (d2): 1740 mm
Width Nut and Lock (B2): 156 mm
Mounting Dimensions
Thread Oil Connector (G1): G1/4
Distance Oil Connector (a): 15
Thread Depth Oil Connector (IG1): 15
Locknut: HM31/1500
Fuse: MS31/1000
Taper: 1:12
1
Product Description

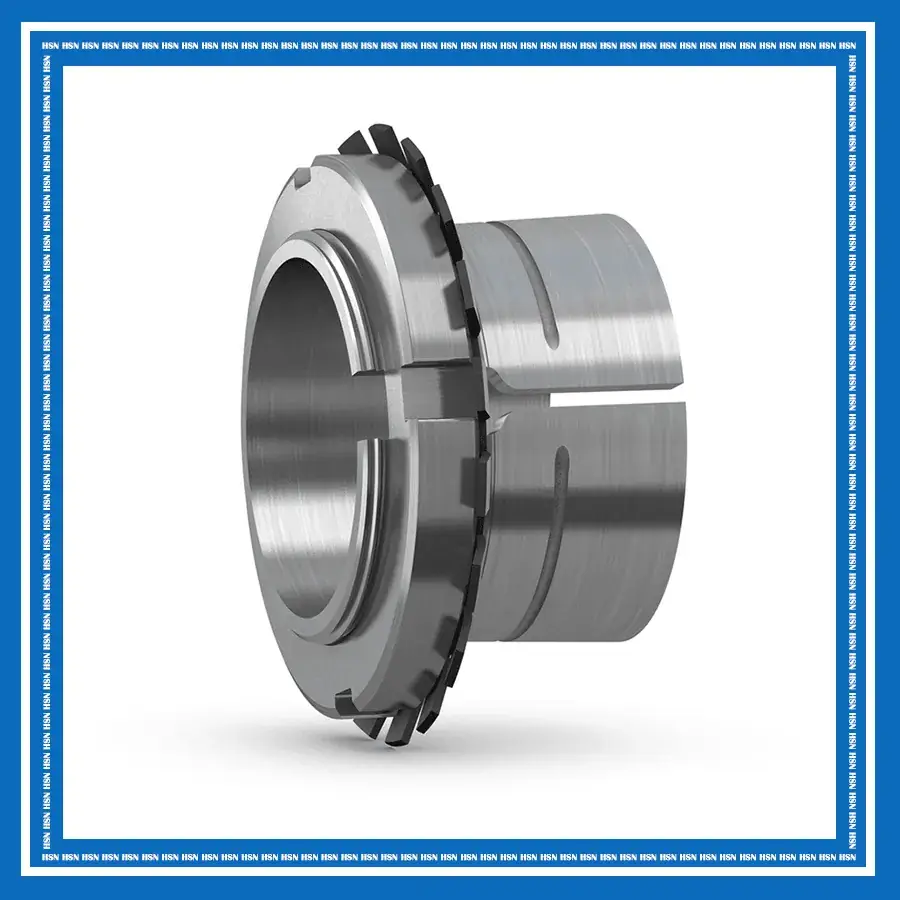

The FAG H31/1500-HG adapter sleeve consists of a tapered steel sleeve, locknut, and locking washer. Its slotted design allows bearings with tapered bores to be securely mounted on cylindrical shafts without requiring a tapered shaft seat. The locknut helps drive the bearing onto the tapered sleeve during mounting, while the locking washer secures the nut in position. Its simple and reliable design facilitates bearing mounting and removal.
The H31/1500-HG adapter sleeve is widely used in conveyor systems, industrial fans, pumps, gearboxes, agricultural machinery, material handling equipment, and general industrial machinery. It provides a practical and reliable solution for mounting tapered bore bearings, while simplifying shaft design, installation, adjustment, and maintenance.
