HCN1008-K-PVPA1-SP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: HCN1008-K-PVPA1-SP
Category: Super-Precision Bearings
1
Weight and Dimensions
Bore (d): 40 mm
Outer (D): 68 mm
Width (B): 15 mm
Weight: 0.16 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 27500 N
Basic Static Load Rating, Radial (C0r): 27000 N
Fatigue Load Limit, Radial (Cur): 2600 N
Limiting Speed for Grease Lubrication (nG Grease): 29000 r/min
Limiting Speed for Oil Lubrication (nG Oil): 34000 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Super-Precision Bearings Guide
Product Description

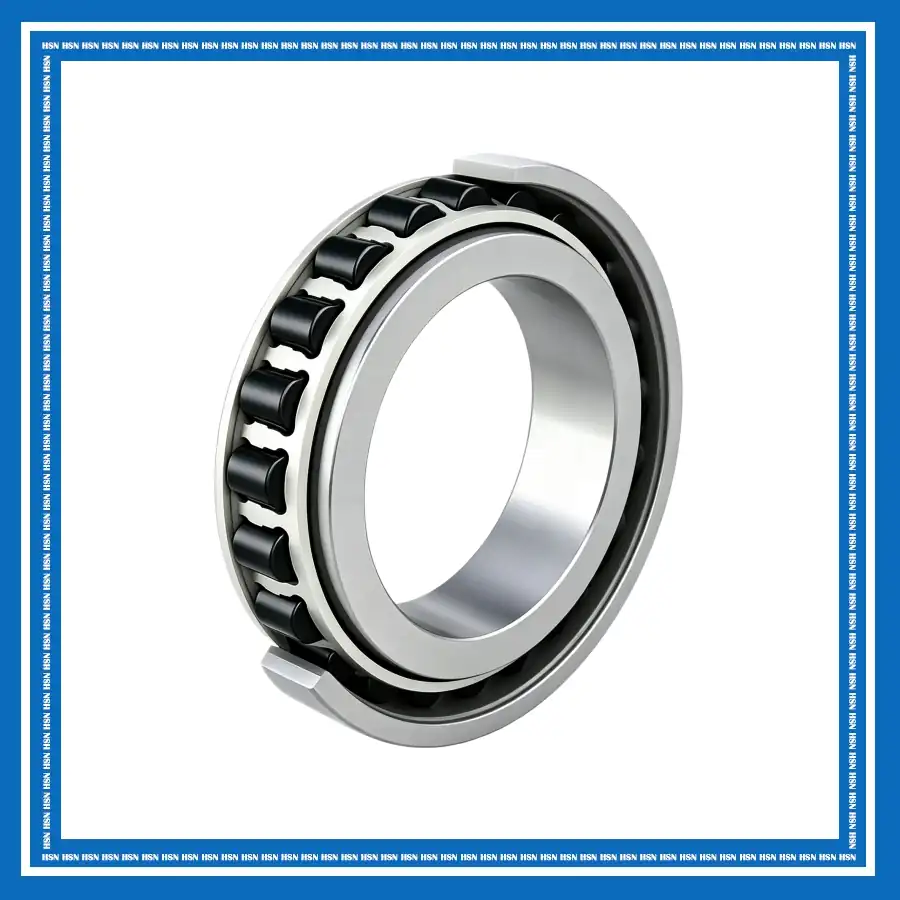

The HCN1008-K-PVPA1-SP super precision cylindrical roller bearing consists of an inner ring, outer ring, ceramic cylindrical rollers, and an outer-ring guided PEEK cage. The ceramic rollers help reduce centrifugal forces, friction, and heat generation while providing high radial rigidity and excellent speed capability. Its tapered bore allows precise adjustment of radial internal clearance during mounting, while the SP precision class ensures high running accuracy and stable performance.
The HCN1008-K-PVPA1-SP bearing is mainly suitable for high-speed machine tool main spindles, precision grinding and milling spindles, printing machinery, and other high-accuracy spindle systems. Its ceramic rollers, high radial rigidity, adjustable radial clearance, and excellent speed capability provide reliable radial support where high running accuracy and thermal stability are required.
