HS7018-C-T-P4S
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: HS7018-C-T-P4S
Category: Super-Precision Bearings
1
Weight and Dimensions
Bore (d): 90 mm
Outer (D): 140 mm
Width (B): 24 mm
Weight: 1.27 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 36 KN
Basic Static Load Rating, Radial (C0r): 26.5 KN
Fatigue Load Limit, Radial (Cur): 2550 N
Limiting Speed for Grease Lubrication (nG Grease): 14000 r/min
Limiting Speed for Oil Lubrication (nG Oil): 22000 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Super-Precision Bearings Guide
Product Description

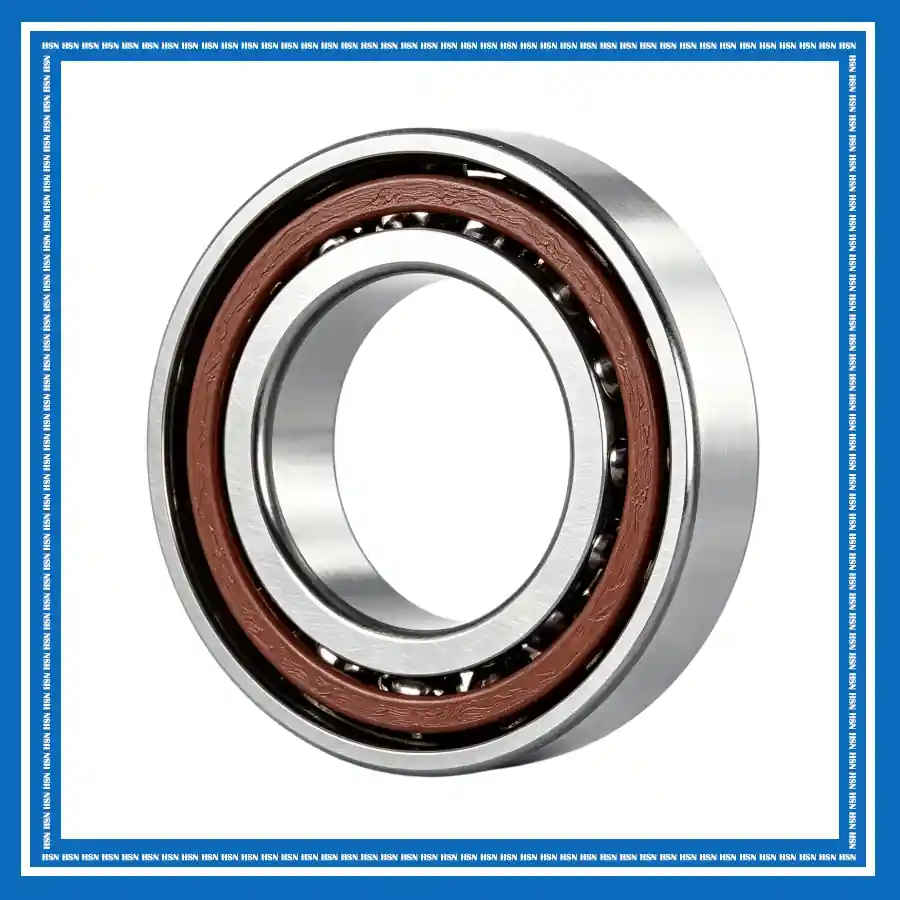

The HS7018-C-T-P4S high-speed super precision spindle bearing consists of an inner ring, outer ring, steel balls, and a laminated fabric cage. Its optimized internal design and smaller rolling elements provide low friction, reduced heat generation, and excellent high-speed capability. The 15° contact angle is optimized for high-speed operation, while the P4S precision class ensures high running accuracy and stable performance.
The HS7018-C-T-P4S bearing is suitable for high-speed machine tool spindles, machining centers, grinding machines, milling machines, and other precision equipment. Its high running accuracy, low heat generation, and excellent speed capability provide reliable performance in high-speed and precision applications.
