N3196
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: N3196
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 480 mm 18.8976 in
Outer Diameter (D): 790 mm 31.1024 in
Width (W): 248 mm 9.7638 in
Weight: 500 kg 1102 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 5940 KN 1335000 lbs
Static Capacity (Co) : 10800 KN 2428000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

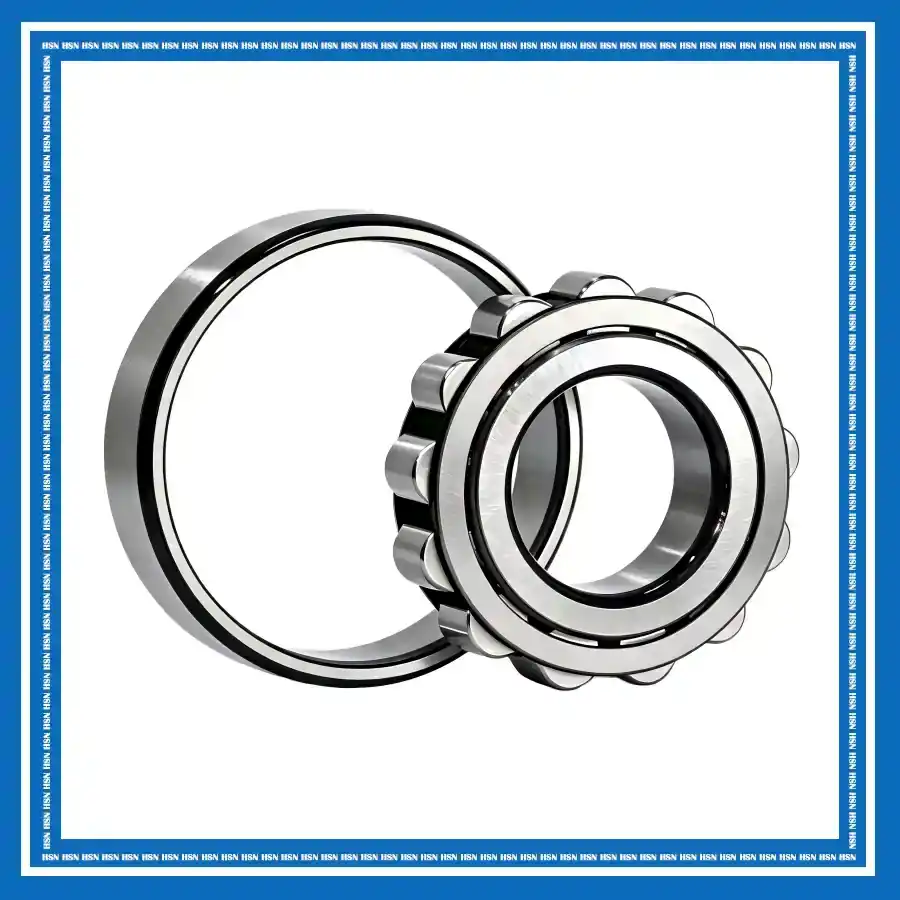

The American Roller Bearing N3196 cylindrical roller bearing consists of a double-ribbed inner ring, a ribless outer ring, cylindrical rollers, and a cage. Its line-contact roller design provides high radial load capacity and rigidity, while allowing axial displacement between the inner and outer rings to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other industrial machinery requiring reliable radial support and axial displacement capability.
