NCF2224V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NCF2224V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 120 mm 4.7244 in
Outer Diameter (D): 215 mm 8.4646 in
Width (W): 48 mm 1.8898 in
Weight: 9 kg 20 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 515 KN 115800 lbs
Static Capacity (Co) : 735 KN 165300 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

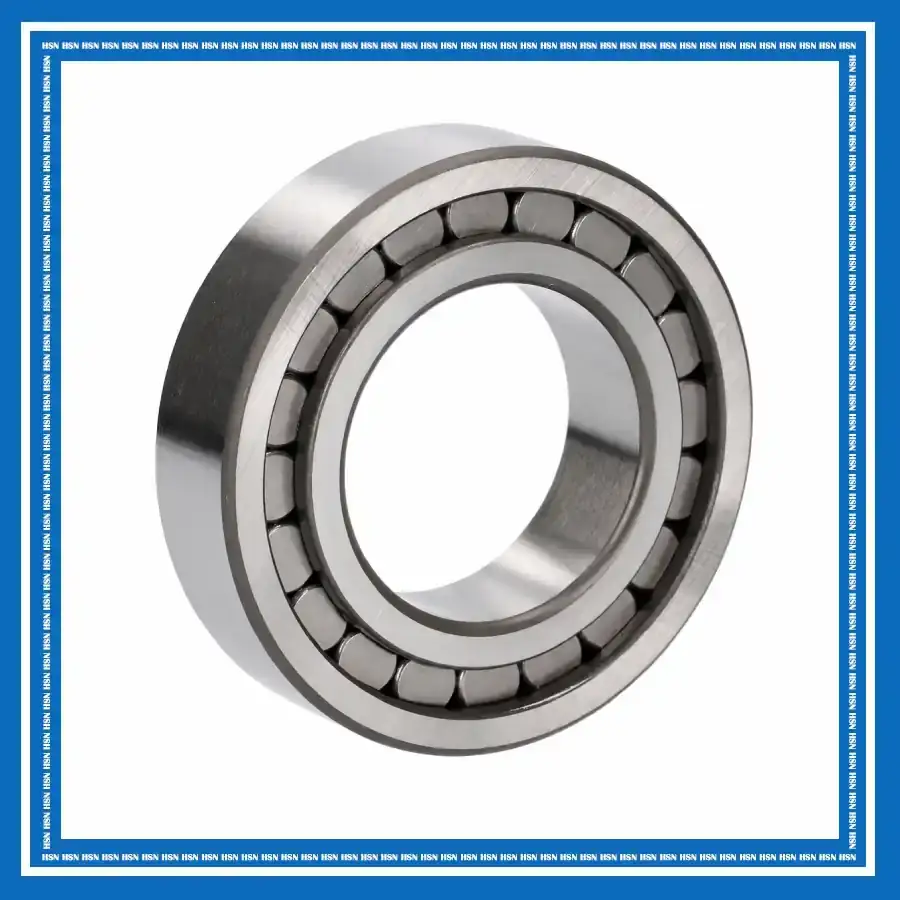

The American Roller Bearing NCF2224V full complement cylindrical roller bearing consists of inner and outer rings with a full complement of cylindrical rollers. Its full complement design incorporates more rollers than comparable caged bearings, providing higher radial load capacity within the same envelope dimensions. The increased number of rollers results in slightly higher internal friction, making the bearing well suited for heavy-load applications where load capacity is more important than high-speed operation. It is suitable for industrial gearboxes, steel mill equipment, material handling machinery, heavy industrial equipment, and other demanding applications requiring high radial load capacity and reliable support.
