NCF29/560V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NCF29/560V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 560 mm 22.0472 in
Outer Diameter (D): 750 mm 29.5276 in
Width (W): 112 mm 4.4094 in
Weight: 140 kg 309 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 3030 KN 681200 lbs
Static Capacity (Co) : 6700 KN 1506300 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

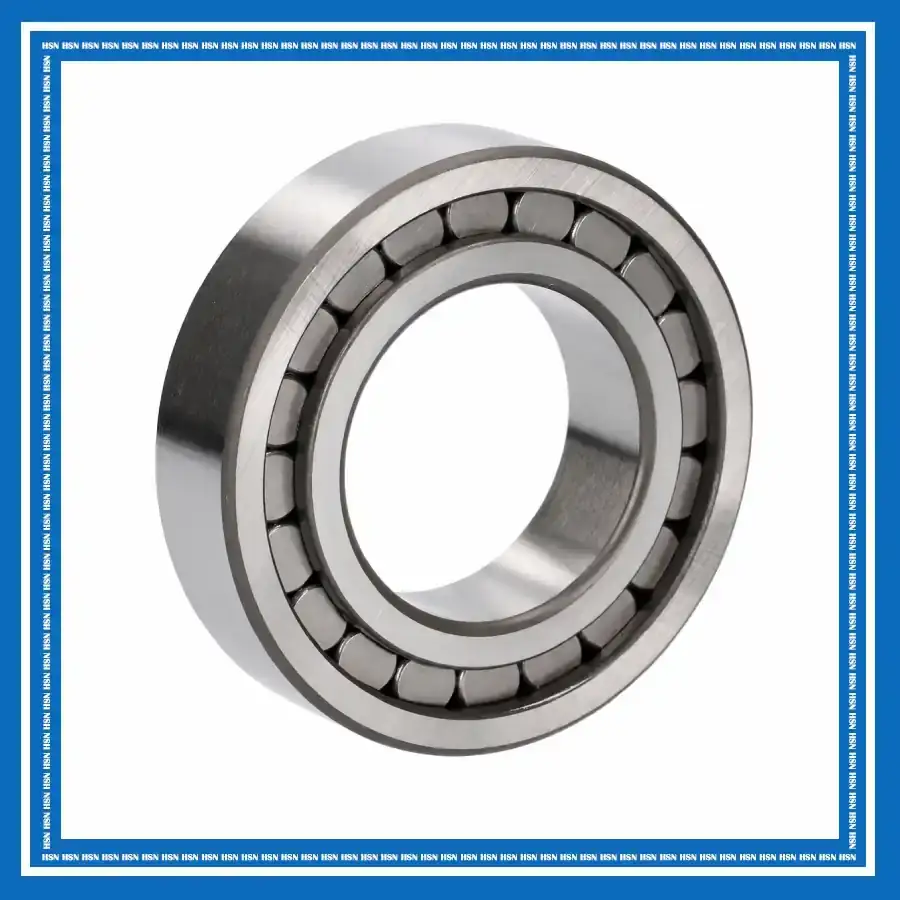

The American Roller Bearing NCF29/560V full complement cylindrical roller bearing consists of inner and outer rings with a full complement of cylindrical rollers. Its full complement design incorporates more rollers than comparable caged bearings, providing higher radial load capacity within the same envelope dimensions. The increased number of rollers results in slightly higher internal friction, making the bearing well suited for heavy-load applications where load capacity is more important than high-speed operation. It is suitable for industrial gearboxes, steel mill equipment, material handling machinery, heavy industrial equipment, and other demanding applications requiring high radial load capacity and reliable support.
