NJ2360E
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NJ2360E
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 300 mm 11.8110 in
Outer Diameter (D): 620 mm 24.4094 in
Width (W): 185 mm 7.2835 in
Weight: 275 kg 606 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 4020 KN 903700 lbs
Static Capacity (Co) : 5850 KN 1315000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

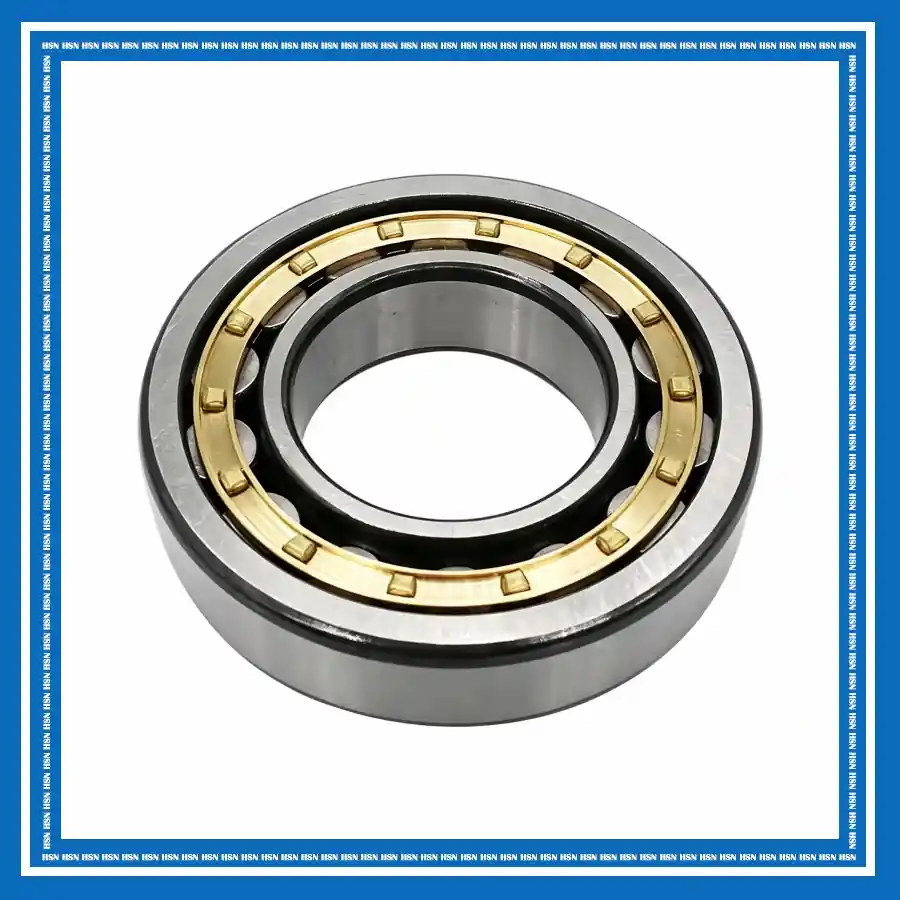

The American Roller Bearing NJ2360E cylindrical roller bearing consists of a double-ribbed outer ring, a single-ribbed inner ring, cylindrical rollers, and a cage. Its optimized internal design provides high radial load capacity and rigidity, while the rib arrangement enables axial location and supports axial loads in one direction. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other heavy-duty machinery requiring reliable radial support and axial location.
