NJ3096
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NJ3096
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 480 mm 18.8976 in
Outer Diameter (D): 700 mm 27.5591 in
Width (W): 165 mm 6.4961 in
Weight: 219 kg 482 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 3500 KN 786800 lbs
Static Capacity (Co) : 7750 KN 1742000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

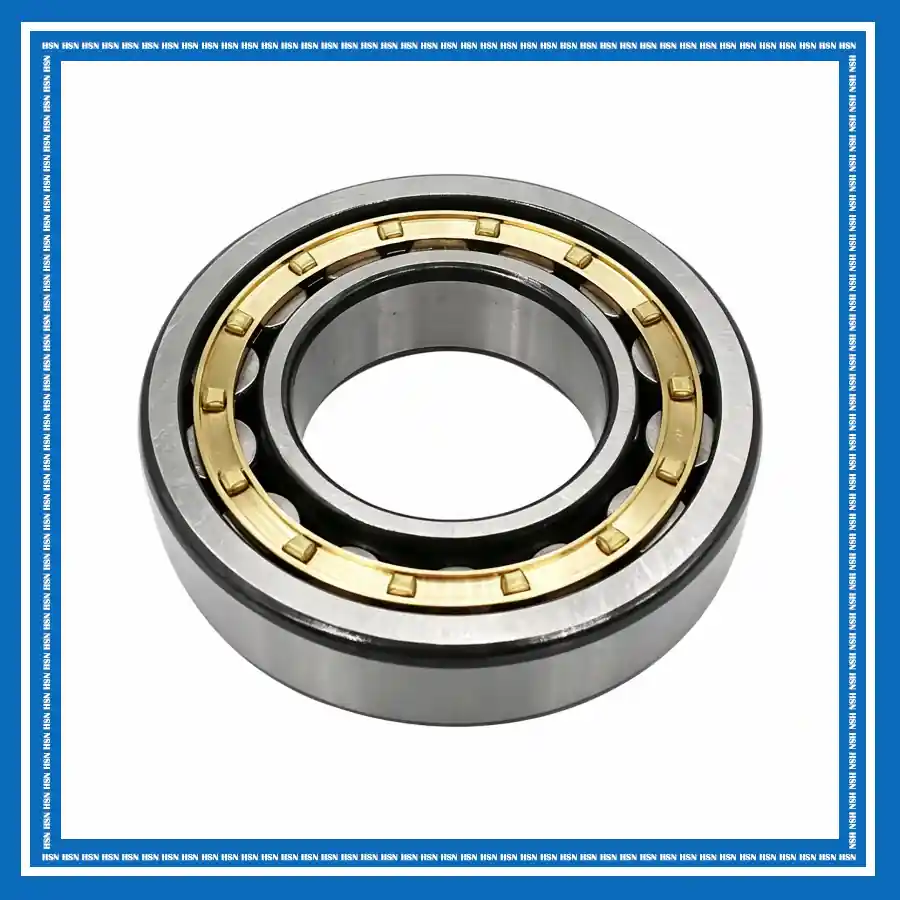

The American Roller Bearing NJ3096 cylindrical roller bearing consists of a double-ribbed outer ring, a single-ribbed inner ring, cylindrical rollers, and a cage. Its line-contact roller design provides high radial load capacity and rigidity, while the rib arrangement enables axial location and supports axial loads in one direction. The separable construction facilitates mounting and maintenance while providing stable performance under demanding loads. It is suitable for electric motors, industrial gearboxes, conveyors, mining equipment, crushers, and other heavy-duty machinery requiring reliable radial support and axial location.
