NJG1888V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NJG1888V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 440 mm 17.3228 in
Outer Diameter (D): 540 mm 21.2598 in
Width (W): 46 mm 1.8110 in
Weight: 22 kg 48.5 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 670 KN 150700 lbs
Static Capacity (Co) : 1460 KN 328300 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

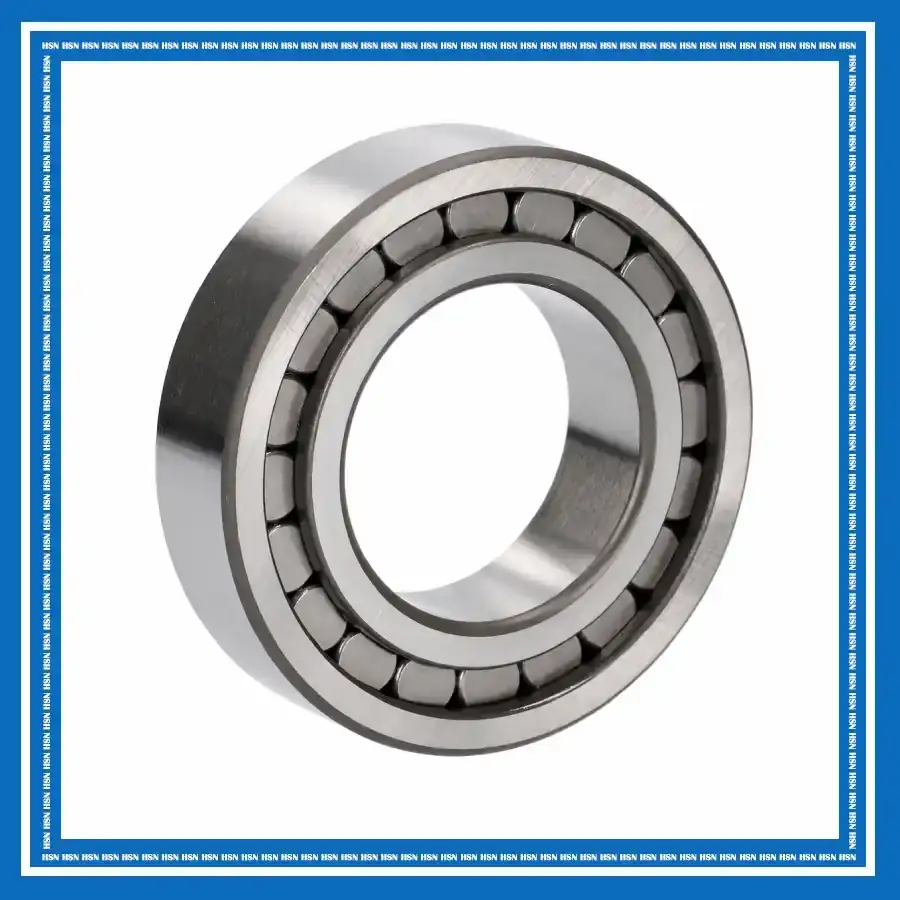

The American Roller Bearing NJG1888V full complement cylindrical roller bearing consists of inner and outer rings with a full complement of cylindrical rollers. Its full complement design incorporates more rollers than comparable caged bearings, providing higher radial load capacity within the same envelope dimensions. The increased number of rollers results in slightly higher internal friction, making the bearing more suitable for heavy-load applications where high load capacity is more important than high-speed operation. It is suitable for industrial gearboxes, steel mill equipment, material handling machinery, heavy machinery, and other demanding applications requiring high radial load capacity and reliable support.
