NN40/950
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NN40/950
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 950 mm 37.4016 in
Outer Diameter (D): 1360 mm 53.5433 in
Width (W): 412 mm 16.2205 in
Weight: 1900 kg 4189 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 14200 KN 3192400 lbs
Static Capacity (Co) : 35500 KN 7980800 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

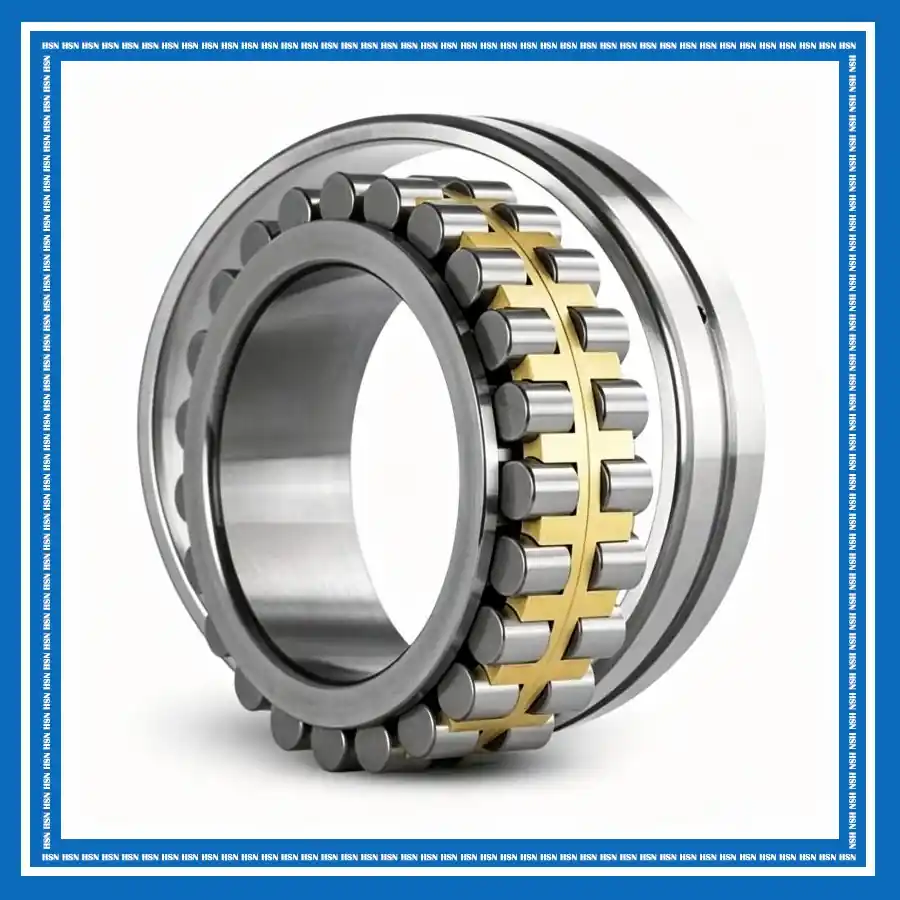

The American Roller Bearing NN40/950 double-row cylindrical roller bearing consists of an inner ring, a separable outer ring, two rows of cylindrical rollers, and a machined brass cage. Its double-row roller arrangement provides high radial load capacity and rigidity, while allowing axial displacement to accommodate shaft expansion during operation. The separable outer ring facilitates mounting and maintenance, while the robust cage and roller arrangement provide smooth and stable performance under demanding loads. It is suitable for lathes, machine tools, industrial gearboxes, pinion stands, rolling mill equipment, and other heavy-duty rotating machinery requiring high radial load capacity, rigidity, and reliable shaft support.
