NNU40/850
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NNU40/850
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 850 mm 33.4646 in
Outer Diameter (D): 1220 mm 48.0315 in
Width (W): 365 mm 14.3701 in
Weight: 1350 kg 2976 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 11700 KN 2630300 lbs
Static Capacity (Co) : 28500 KN 6407100 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

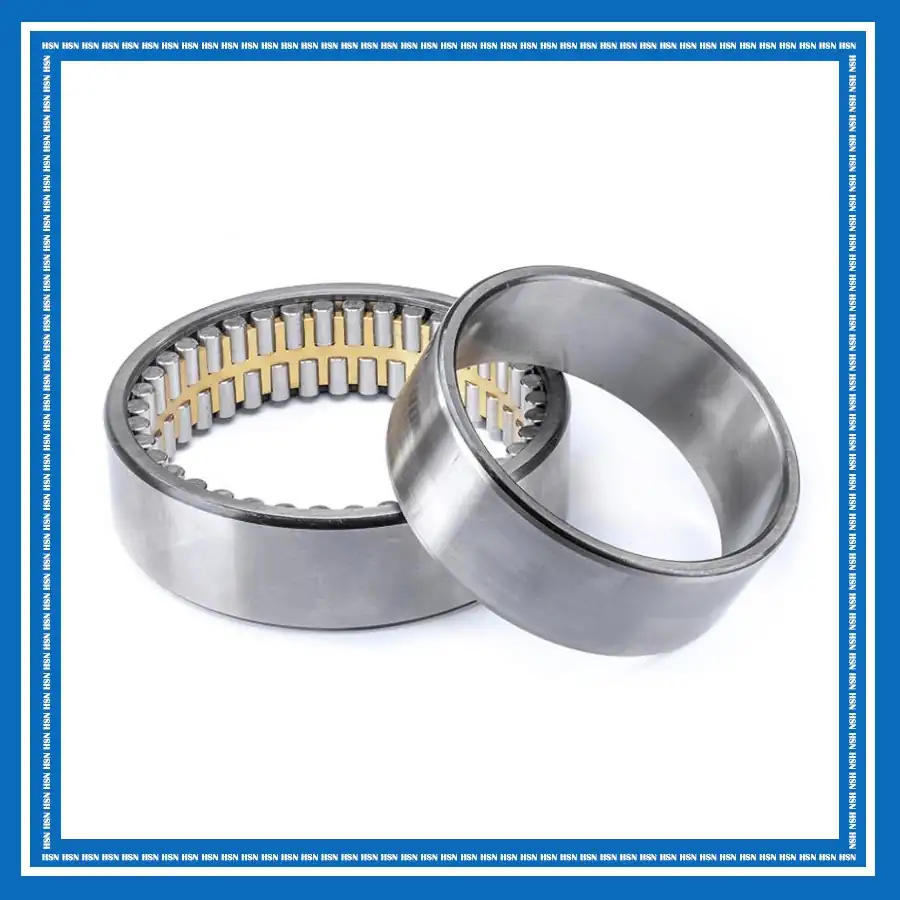

The American Roller Bearing NNU40/850 double-row cylindrical roller bearing consists of an outer ring, a separable inner ring, two rows of cylindrical rollers, and a machined brass cage. Its double-row design provides high radial load capacity and rigidity, while allowing axial displacement to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance, while the robust cage and roller arrangement ensure stable performance under demanding loads. It is suitable for machine tool spindles, industrial gearboxes, pinion stands, rolling mill equipment, printing machinery, and other heavy-duty rotating equipment requiring high radial load capacity, rigidity, and reliable shaft support.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
