NNU4168
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: NNU4168
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 360 mm 14.1732 in
Outer Diameter (D): 580 mm 22.8346 in
Width (W): 243 mm 9.5669 in
Weight: 260 kg 573 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 4020 KN 903800 lbs
Static Capacity (Co) : 7500 KN 1686100 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description

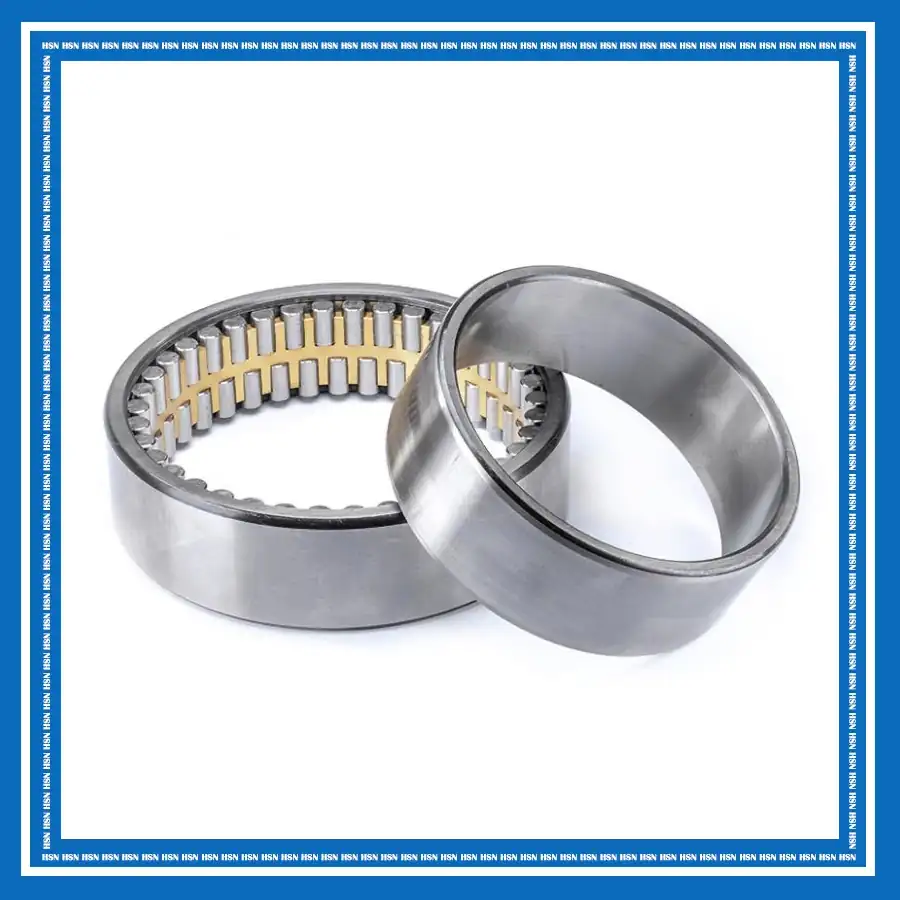

The American Roller Bearing NNU4168 double-row cylindrical roller bearing consists of an outer ring, a separable inner ring, two rows of cylindrical rollers, and a machined brass cage. Its double-row design provides high radial load capacity and rigidity, while allowing axial displacement to accommodate shaft expansion during operation. The separable construction facilitates mounting and maintenance, while the robust cage and roller arrangement ensure stable performance under demanding loads. It is suitable for machine tool spindles, industrial gearboxes, pinion stands, rolling mill equipment, printing machinery, and other heavy-duty rotating equipment requiring high radial load capacity, rigidity, and reliable shaft support.
