NU2218EMA
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: NU2218EMA
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 90.000 mm 3.5433 in
Outer (D): 160.000 mm 6.2992 in
Width (B): 40.000 mm 1.5748 in
DUR/DOR (F/E): 107.000 mm 4.2126 in
Weight: 3.50 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C1) : 275 KN
Static Radial Load Rating (C0): 322 KN
Thermal Reference Speed – Oil: 3600 RPM
Thermal Reference Speed – Grease: 3100 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Cylindrical Roller Bearings Guide
Product Description

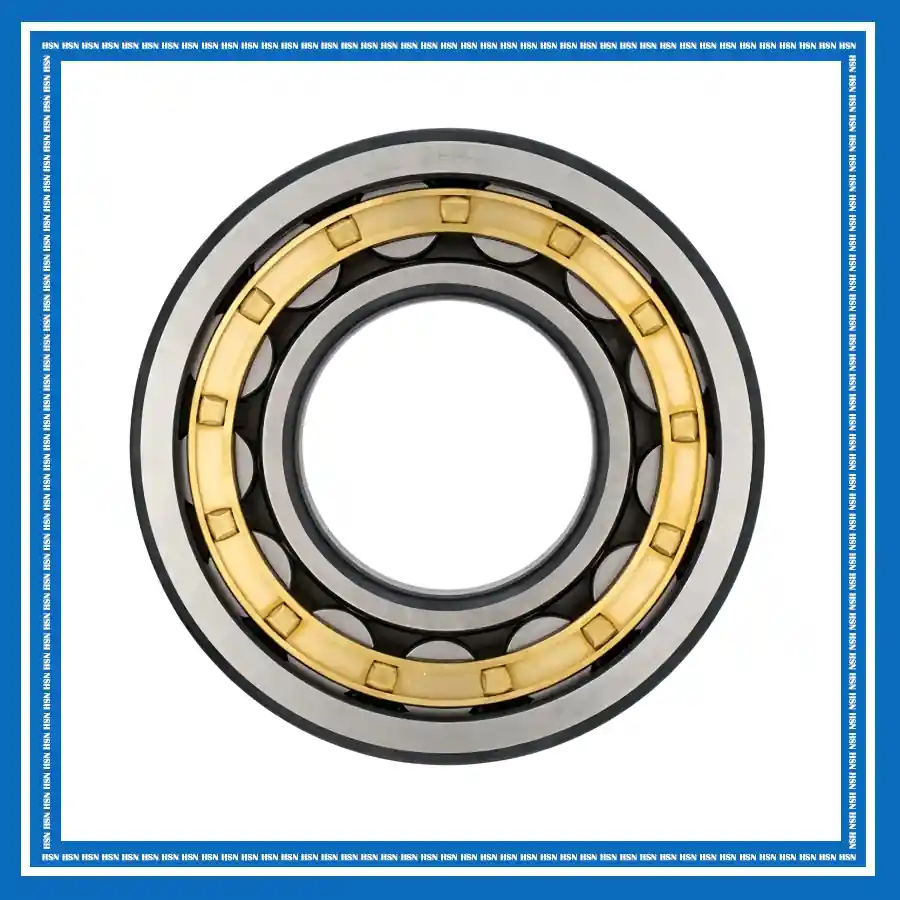

The NU2218EMA Timken single row cylindrical roller bearing consists of an inner ring, an outer ring, a single row of cylindrical rollers, and a cage. The cylindrical roller design provides a large contact area between rollers and raceways, delivering high radial load capacity, excellent rigidity, and reliable performance under heavy radial loads. The separable inner and outer ring design allows convenient installation, inspection, and maintenance, while the optimized roller guidance system helps ensure stable operation at high speeds and demanding working conditions.
The NU2218EMA bearing is widely used in power generation equipment, gear drives, pumps, rolling mills, wind energy systems, and other industrial equipment. It is particularly suitable for applications requiring high radial load capacity, high-speed operation, precise positioning, and long service life under continuous industrial operation.
