NU234EMA
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: NU234EMA
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 170.000 mm 6.6929 in
Outer (D): 310.000 mm 12.2047 in
Width (B): 52.000 mm 2.0472 in
DUR/DOR (F/E): 207.000 mm 8.1496 in
Weight: 17.60 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C1) : 685 KN
Static Radial Load Rating (C0): 822 KN
Thermal Reference Speed – Oil: 2200 RPM
Thermal Reference Speed – Grease: 1900 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Cylindrical Roller Bearings Guide
Product Description

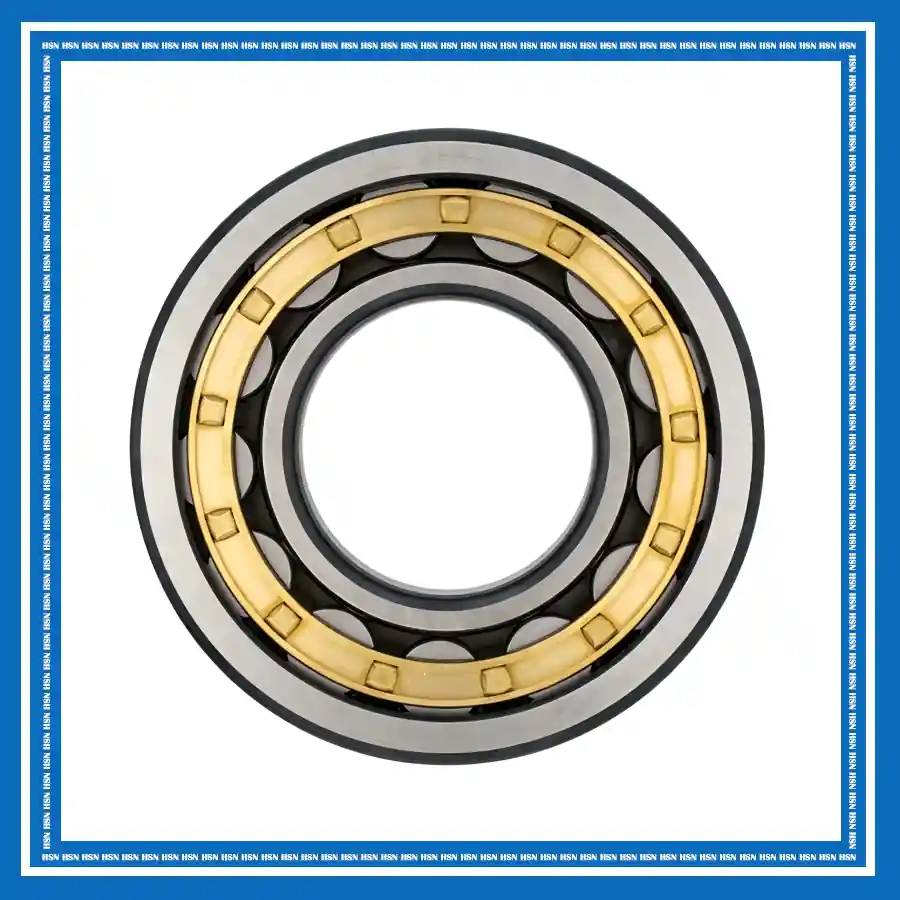

The NU234EMA Timken single row cylindrical roller bearing consists of an inner ring, an outer ring, a single row of cylindrical rollers, and a cage. The cylindrical roller design provides a large contact area between rollers and raceways, delivering high radial load capacity, excellent rigidity, and reliable performance under heavy radial loads. The separable inner and outer ring design allows convenient installation, inspection, and maintenance, while the optimized roller guidance system helps ensure stable operation at high speeds and demanding working conditions.
The NU234EMA bearing is widely used in power generation equipment, gear drives, pumps, rolling mills, wind energy systems, and other industrial equipment. It is particularly suitable for applications requiring high radial load capacity, high-speed operation, precise positioning, and long service life under continuous industrial operation.
