TP812/500
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: TP812/500
Category: Cylindrical Roller Thrust Bearings
1
Weight and Dimensions
Bore (B): 500 mm 19.685 in
Outer (D): 670 mm 26.378 in
Height (H): 135 mm 5.315 in
Weight: 140 kg 309 lbs
Data from ARB (medias)
Dynamic Capacity (Ca) : 3300 KN 695000 lbs
Static Capacity (C0a): 16600 KN 3485000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Thrust Bearings Guide
Product Description

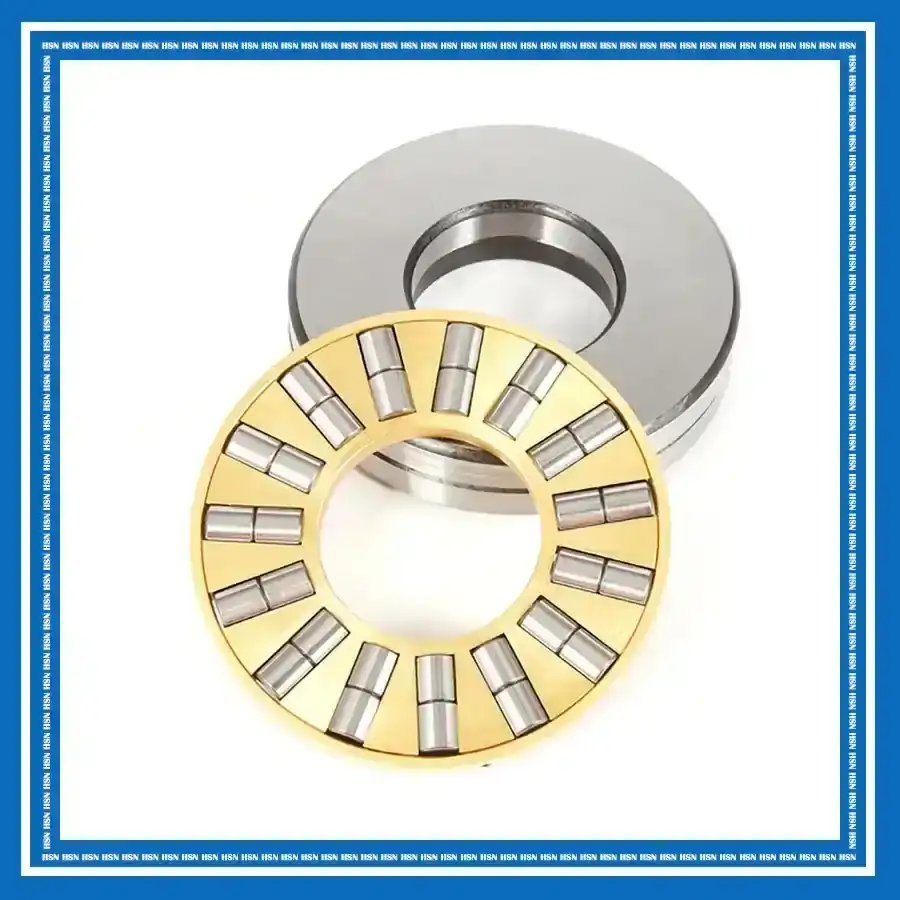

The ARB TP812/500 cylindrical roller thrust bearing consists of precision-ground thrust plates, cylindrical rollers, a machined brass cage, and a retaining band that securely guides and retains the rollers. The cylindrical roller design provides a large contact area with the raceways, delivering high thrust load capacity, axial rigidity, and reliable performance under heavy loads. It is suitable for extruders, screw presses, rock crushers, coal pulverizers, lathe tailstocks, oilfield equipment, and other heavy-duty machinery requiring reliable axial support.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
