VFT12003
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: VFT12003
Category: Tapered Roller Thrust Bearings
1
Weight and Dimensions
Bore (B): 304.8 mm 12 in
Outer (D): 609.6 mm 24 in
Height (H): 114.3 mm 4.5 in
Weight: 191 kg 421 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 7384 KN 1660000 lbs
Static Capacity (C0) : 17793 KN 4000000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Thrust Bearings Guide
Product Description

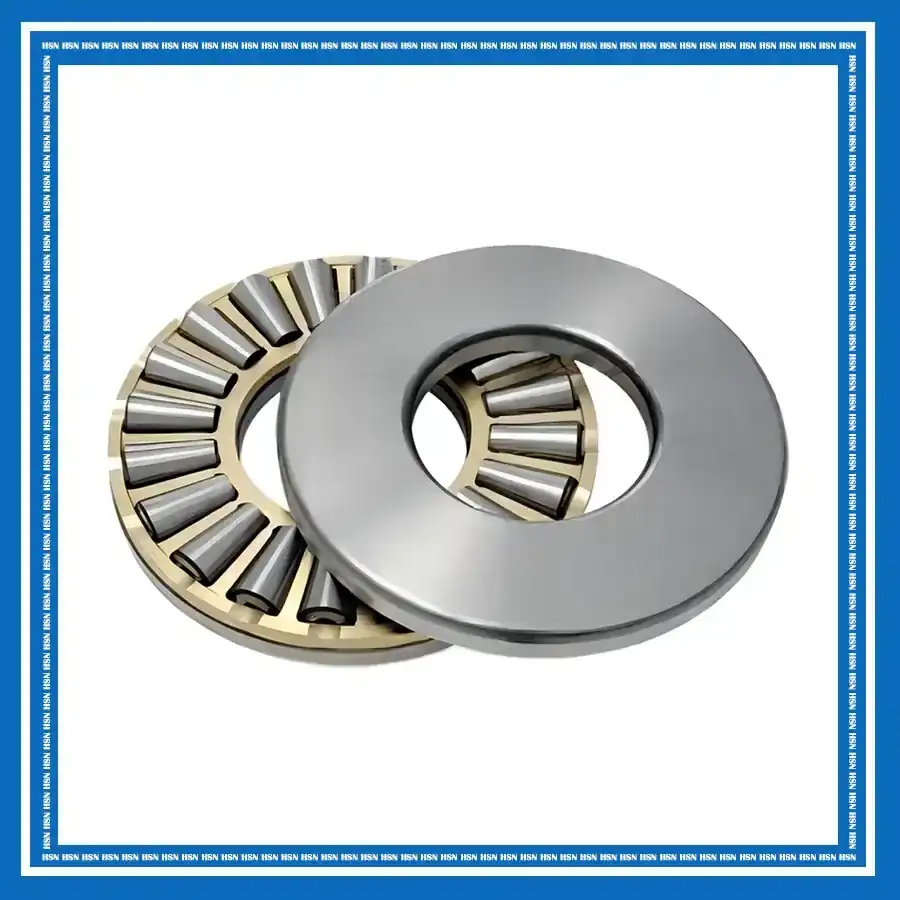

The ARB VFT12003 tapered roller thrust bearing consists of a tapered thrust plate, a flat thrust plate, tapered rollers, and a brass cage. Its V-Flat design allows the bearing to float radially, helping prevent interference with the adjacent radial bearing while providing high thrust load capacity and rigidity. It is particularly suitable for cone crushers, heavy-duty extruders, plastic and rubber processing equipment, and other machinery requiring high-capacity axial support.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
