XC7021-E-T-P4S
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: XC7021-E-T-P4S
Category: Super-Precision Bearings
1
Weight and Dimensions
Bore (d): 105 mm
Outer (D): 160 mm
Width (B): 26 mm
Weight: 1.59 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 69 KN
Basic Static Load Rating, Radial (C0r): 33 KN
Fatigue Load Limit, Radial (Cur): 2180 N
Limiting Speed for Grease Lubrication (nG Grease): 15000 r/min
Limiting Speed for Oil Lubrication (nG Oil): 24000 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Super-Precision Bearings Guide
Product Description

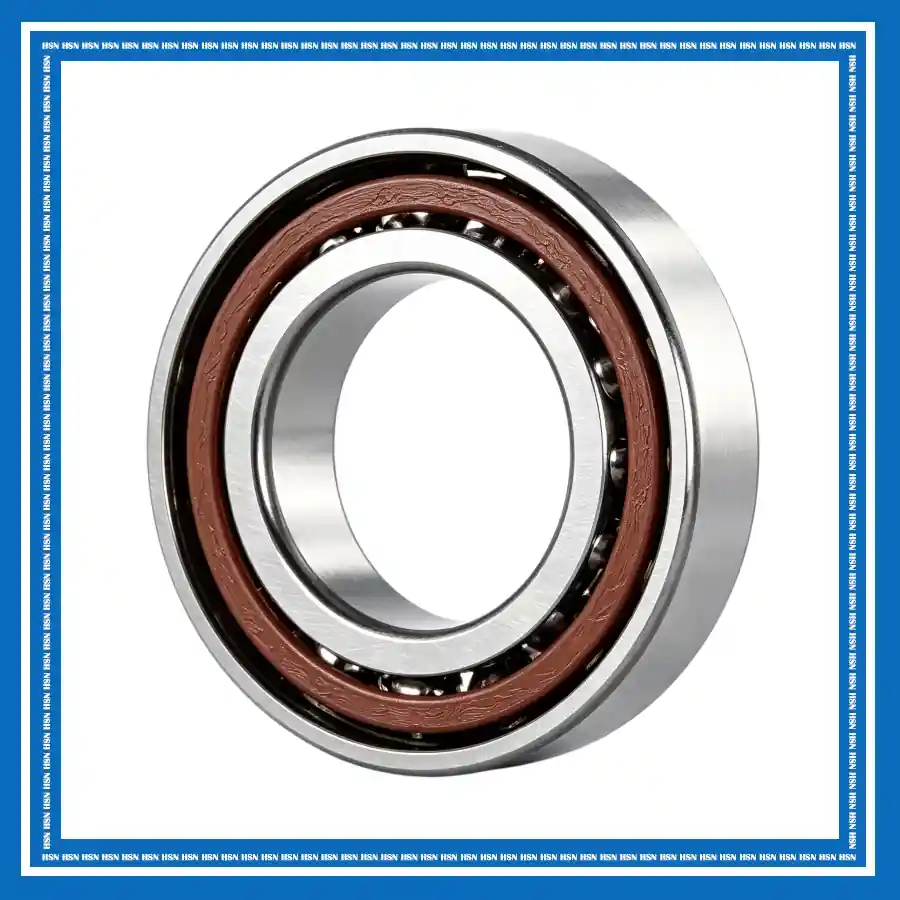

The XC7021-E-T-P4S super precision spindle bearing consists of Cronidur steel inner and outer rings, ceramic balls, and a laminated fabric cage. Its hybrid design combines high-performance Cronidur steel rings with ceramic balls, providing excellent wear resistance, low friction, reduced heat generation, and high-speed capability. The 25° contact angle provides high axial rigidity and load capacity, while the P4S precision class ensures high running accuracy and stable performance.
The XC7021-E-T-P4S bearing is suitable for machine tool spindles, machining centers, grinding machines, precision milling equipment, and other high-performance machinery. Its high running accuracy, wear resistance, low heat generation, and axial rigidity provide reliable performance in demanding high-speed and precision applications.
