240/600 YMD
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 240/600 YMD
Category: Spherical Roller Bearings
1

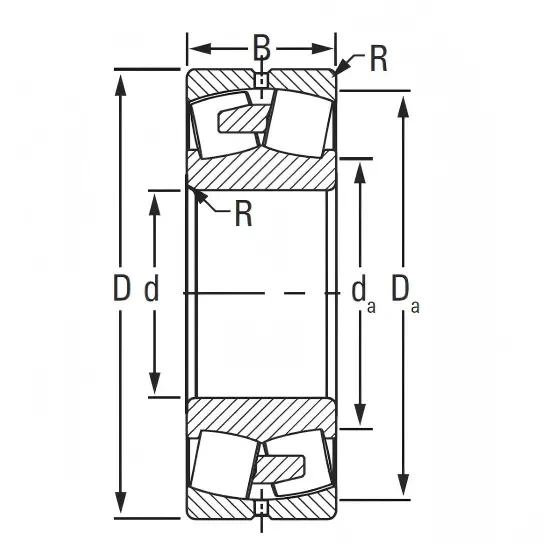

Weight and Dimensions
Bore (d): 600 mm 23.6220 in
Outer (D): 870 mm 34.2520 in
Width (B): 272 mm 10.7087 in
Weight: 538.9 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C) : 8040 KN
Static Radial Load Rating (C0): 16800 KN
Thermal Reference Speed – Oil: 290 RPM
Thermal Reference Speed – Grease: 270 RPM
Limiting Speed: 670 RPM
e Factor: 0.28
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Bearings Guide
Product Description
The 240/600 YMD Timken spherical roller bearing consists of an inner ring, an outer ring, two rows of spherical rollers, and a two-piece, inner-ring-piloted, machined-brass cage. This configuration provides high radial load capacity, bidirectional axial load support, and self-aligning capability to accommodate shaft deflection and misalignment. The high-performance machined-brass cage guided by the inner ring provides excellent strength, wear resistance, and reliable roller guidance, while the two-piece cage design enhances flexibility and durability under heavy loads, shock conditions, and demanding operating environments.
The 240/600 YMD bearing is widely used in mining equipment, crushers, conveyors, industrial gear drives, rolling mills, and heavy-duty machinery. It is particularly suitable for applications requiring high load capacity, misalignment compensation, strong impact resistance, and reliable performance under continuous or severe operating conditions.
