24026 EJ
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 24026 EJ
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 130 mm 5.1181 in
Outer (D): 200 mm 7.874 in
Width (B): 69 mm 2.7165 in
Weight: 7.8 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C) : 664 KN
Static Radial Load Rating (C0): 966 KN
Thermal Reference Speed – Oil: 2400 RPM
Thermal Reference Speed – Grease: 2000 RPM
Limiting Speed: 3040 RPM
e Factor: 0.31
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Spherical Roller Bearings Guide
Product Description

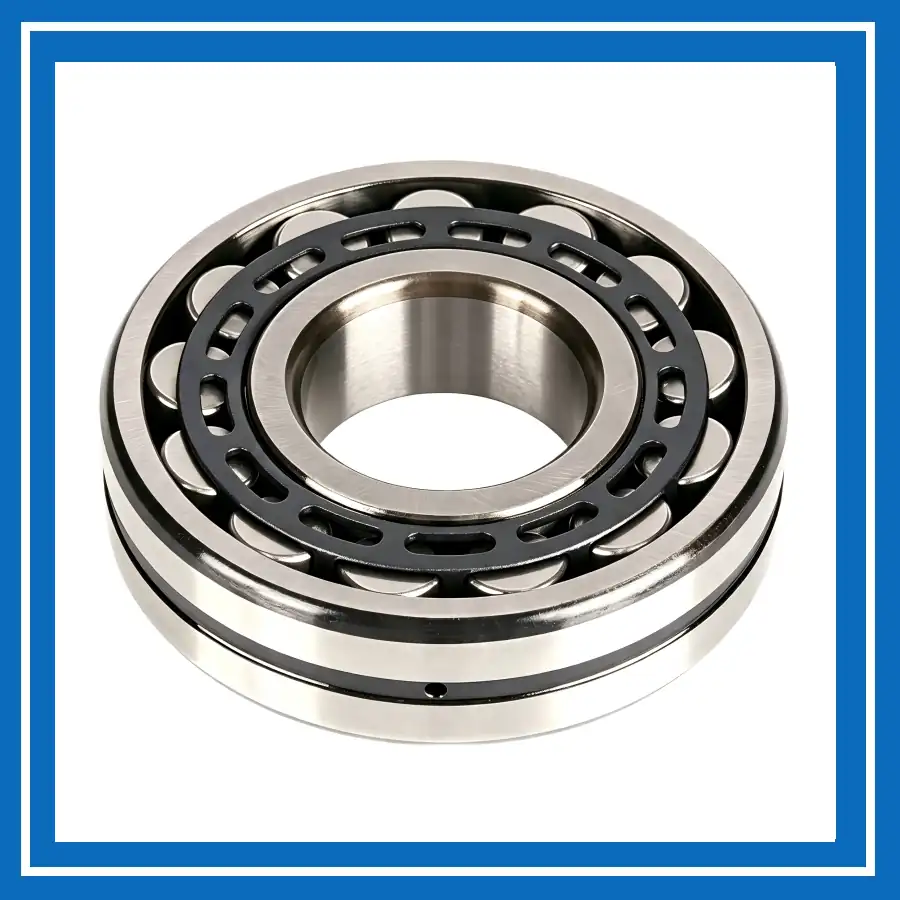

The 24026 EJ Timken spherical roller bearing consists of an inner ring, an outer ring, two rows of spherical rollers, and stamped nitrided steel cages. This configuration provides high radial load capacity, bidirectional axial load support, and self-aligning capability to accommodate shaft deflection and misalignment. The high-performance stamped nitrided steel cages provide excellent wear resistance and reliable roller guidance, helping maintain stable operation under heavy loads, shock conditions, and demanding operating environments.
The 24026 EJ bearing is widely used in mining equipment, crushers, vibrating screens, conveyors, gear drives, paper machinery, fans, and other industrial equipment. It is particularly suitable for applications requiring high load capacity, misalignment accommodation, shock resistance, and reliable operation under continuous or severe working conditions.
