294/530-E1-XL-MB
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 294/530-E1-XL-MB
Category: Spherical Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 530 mm
Outer (D): 920 mm
Width (T): 236 mm
Weight: 653 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Axial Ca: 12700000 N
Basic Static Load Rating, Axial (C0a): 44500000 N
Fatigue Load Limit, Axial (Cua): 3750000 N
Limiting Speed (nG): 650 r/min
Reference Speed (nϑr): 305 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Thrust Bearings
Product Description

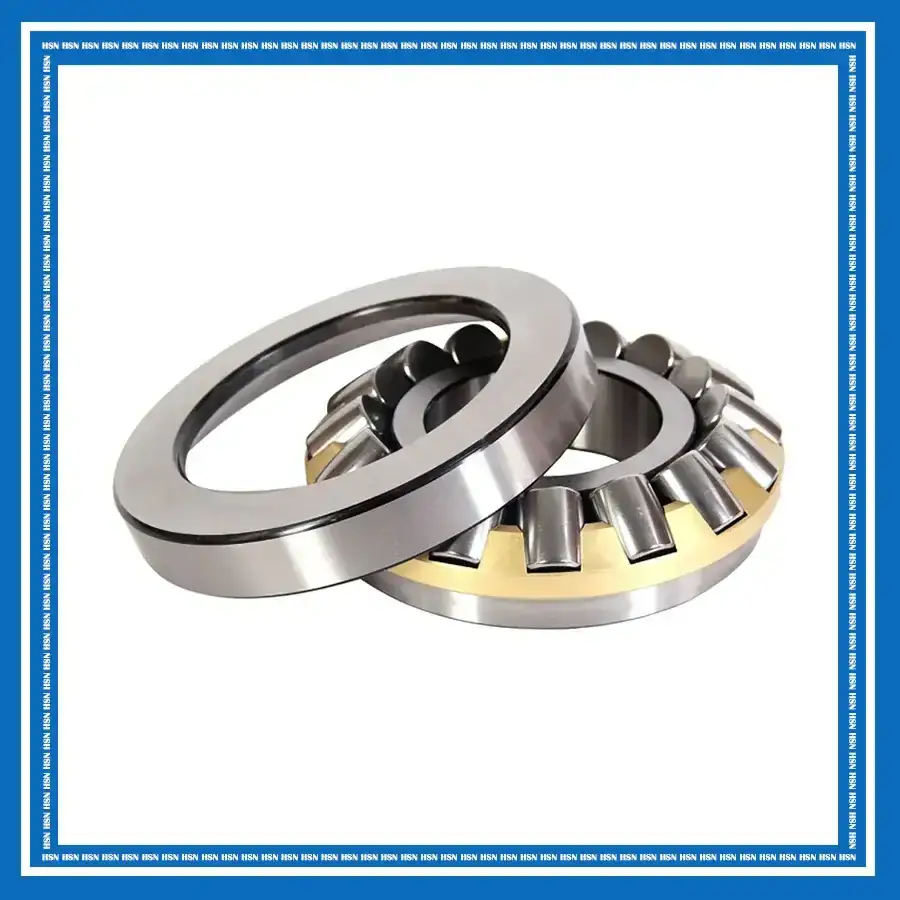

The 294/530-E1-XL-MB spherical roller thrust bearing consists of a shaft washer, housing washer, asymmetrical spherical rollers, and a solid brass cage. The E1 design features optimized internal geometry for high load carrying capacity, while the XL design provides enhanced performance and longer service life. The MB cage offers high strength, low noise, and reliable roller guidance. Its spherical raceway allows the bearing to accommodate misalignment and shaft deflection while supporting very high axial loads and radial loads.
The 294/530-E1-XL-MB bearing is suitable for heavy-duty gearboxes, mining equipment, metalworking machinery, lifting equipment, marine systems, and industrial transmissions. Its high load capacity, self-aligning capability, X-life performance, and robust brass cage provide reliable operation in demanding industrial applications.
