61807-2RSR
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 61807-2RSR
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 35 mm
Outer (D): 47 mm
Width (B): 7 mm
Weight: 0.032 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 4700 N
Basic Static Load Rating, Radial (C0r): 3350 N
Fatigue Load Limit, Radial (Cur): 170 N
Limiting Speed (nG): 7000 r/min
Reference Speed (nϑr): – r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

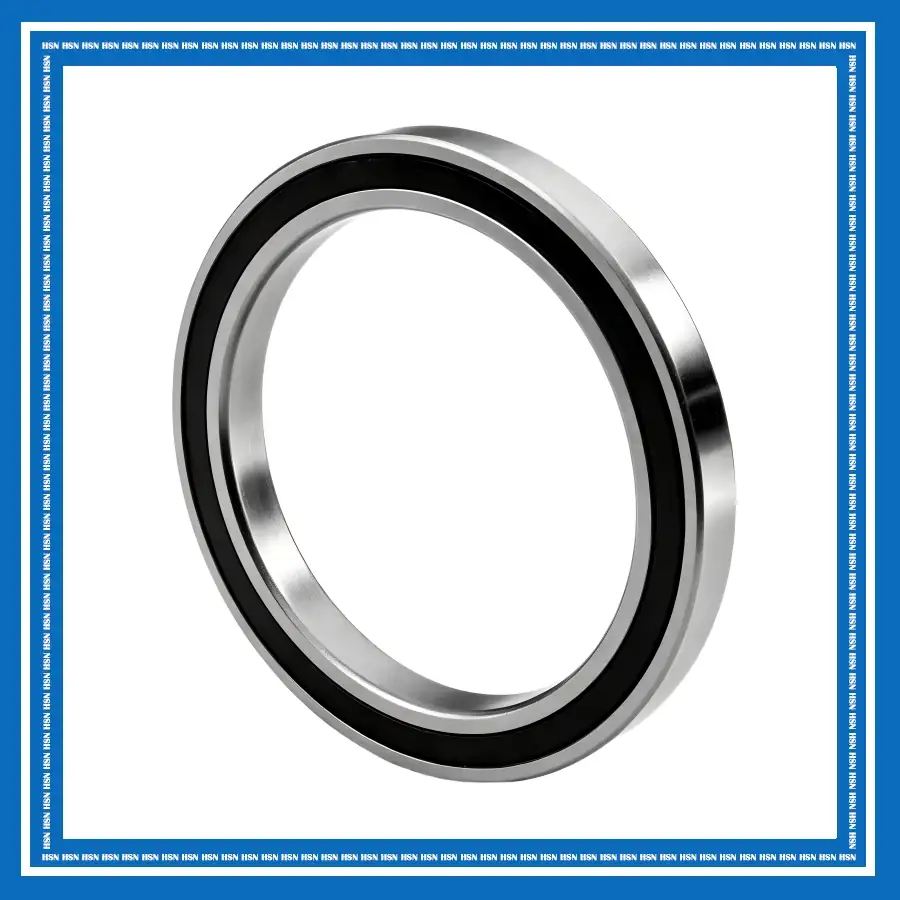

The 61807-2RSR FAG thin-section deep groove ball bearing with 2RSR seals consists of an inner ring, an outer ring, balls, a cage, and contact lip seals on both sides. The 2RSR sealing design provides reliable protection against the ingress of water and dust while helping prevent grease loss. The bearing also offers smooth operation and good high-speed performance while supporting radial and bidirectional axial loads.
The 61807-2RSR bearing is widely used in small electric motors, miniature pumps, automation equipment, precision instruments, compact drives, and other small machinery. It is particularly suitable for applications requiring high-speed operation, reliable sealing, grease retention, and protection against water and dust.
