6200
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 6200
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 10 mm
Outer (D): 30 mm
Width (B): 9 mm
Weight: 0.030 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 5100 N
Static Radial Load Rating (C0): 2400 N
Limiting Speed – Oil: 22000 rpm
Limiting Speed – Grease: 32000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Deep Groove Ball Bearings
Product Description

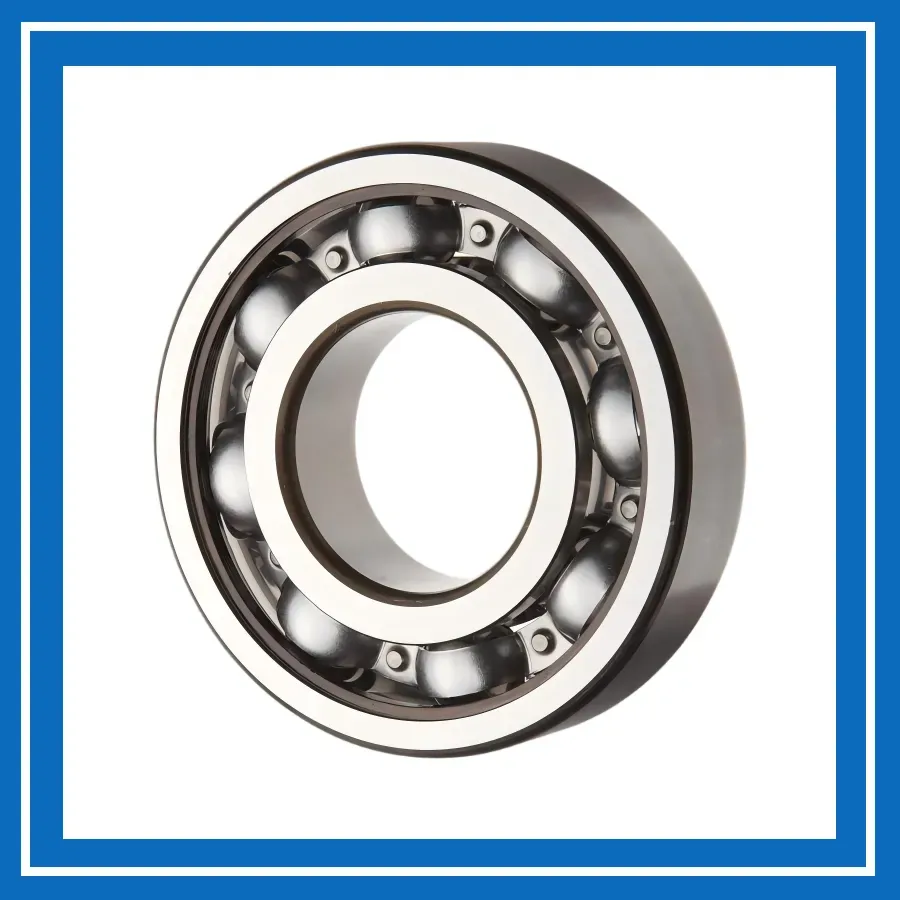

The 6200 Timken deep groove ball bearing consists of an inner ring, an outer ring, balls, and a cage. The deep raceway design provides low friction, smooth operation, and high-speed performance while supporting radial loads and axial loads in both directions. Its simple and robust construction ensures reliable operation and low maintenance requirements.
The 6200 bearing is widely used in electric motors, pumps, fans, gear drives, agricultural machinery, machine tools, and general industrial equipment. It is particularly suitable for applications requiring high-speed operation, low friction, low noise, and reliable continuous performance.
