6220-2Z
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 6220-2Z
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 100 mm
Outer (D): 180 mm
Width (B): 34 mm
Weight: 3.36 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 130000 N
Basic Static Load Rating, Radial (C0r): 93000 N
Fatigue Load Limit, Radial (Cur): 5400 N
Limiting Speed (nG): 4250 r/min
Reference Speed (nϑr): 4800 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

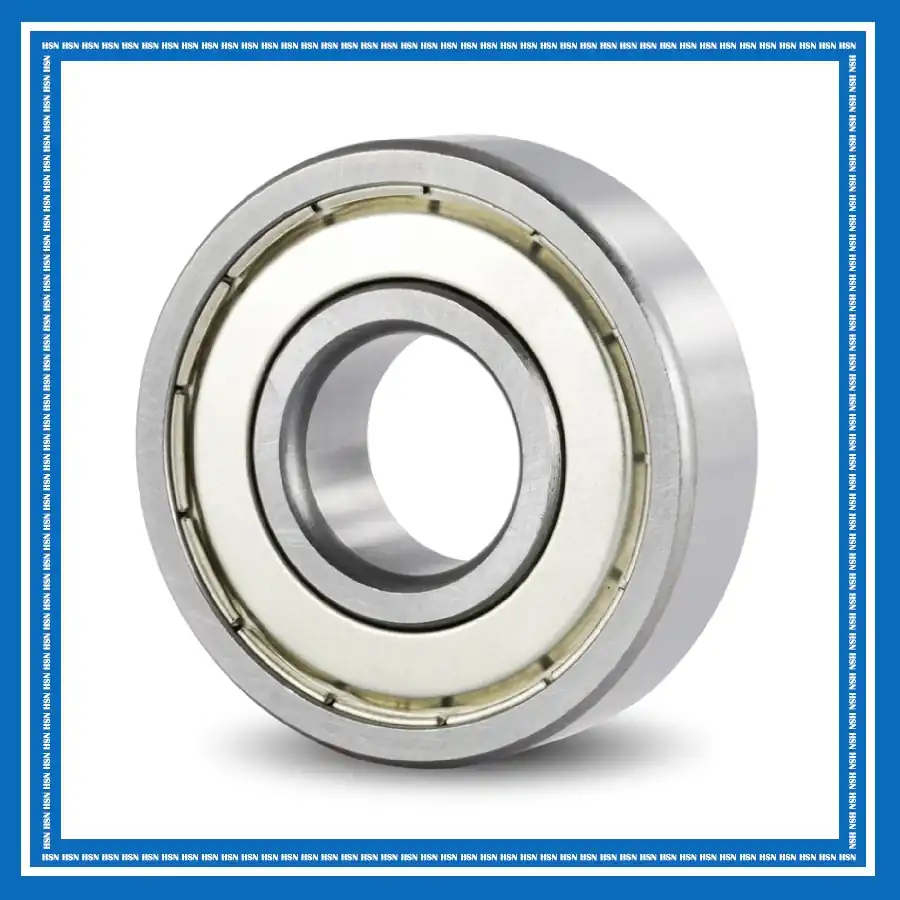

The 6220-2Z FAG deep groove ball bearing consists of an inner ring, an outer ring, balls, a cage, and metal shields on both sides. The double-shield design helps retain lubricant and protect the bearing from dust and contaminants while maintaining low friction and high-speed performance. It supports radial loads and axial loads in both directions for smooth and reliable operation.
The 6220-2Z bearing is widely used in electric motors, fans, pumps, conveyors, power tools, and general industrial equipment. It is particularly suitable for applications requiring high-speed operation, low friction, lubricant retention, and protection from external contamination.
