7306-B-XL-2RS-TVP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 7306-B-XL-2RS-TVP
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 30 mm
Outer (D): 72 mm
Width (B): 19 mm
Weight: 0.341 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 35500 N
Basic Static Load Rating, Radial (C0r): 22100 N
Fatigue Load Limit, Radial (Cur): 1490 N
Limiting Speed (nG): 6000 rpm
Reference Speed (nϑr): – rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

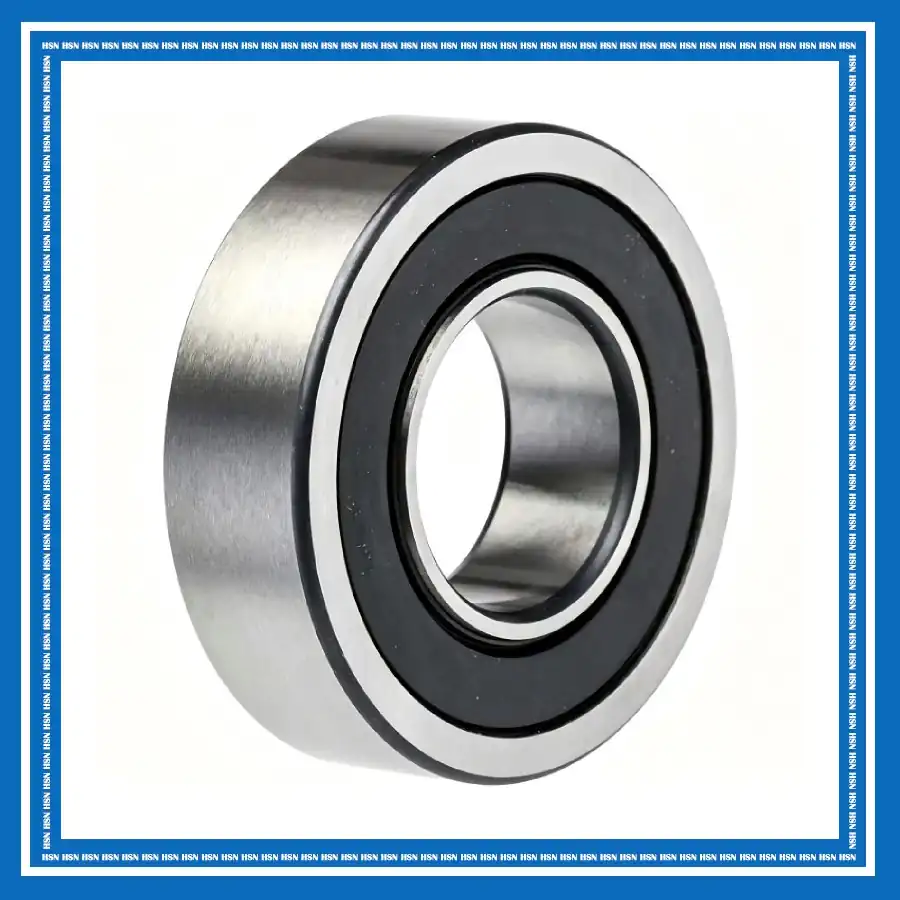

The 7306-B-XL-2RS-TVP FAG angular contact ball bearing consists of an inner ring, an outer ring, balls, a solid cage made from glass-fiber reinforced polyamide PA66, and contact seals on both sides. The 40° contact angle provides high axial load capacity while supporting combined loads. The X-life design improves load-carrying performance, while the 2RS seals protect against contamination and retain lubricant. FAG confirms this series uses two-sided contact seals and a PA66 solid cage.
The 7306-B-XL-2RS-TVP bearing is well suited for fluid pumps, hydraulic equipment, enclosed drive units, and industrial processing machinery. It is particularly suitable where combined load support, lubricant retention, contamination protection, and reliable continuous operation are required.
