7407-B-XL-MP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 7407-B-XL-MP
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 35 mm
Outer (D): 100 mm
Width (B): 25 mm
Weight: 1.014 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 65000 N
Basic Static Load Rating, Radial (C0r): 43000 N
Fatigue Load Limit, Radial (Cur): 2900 N
Limiting Speed (nG): 11000 rpm
Reference Speed (nϑr): 5400 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

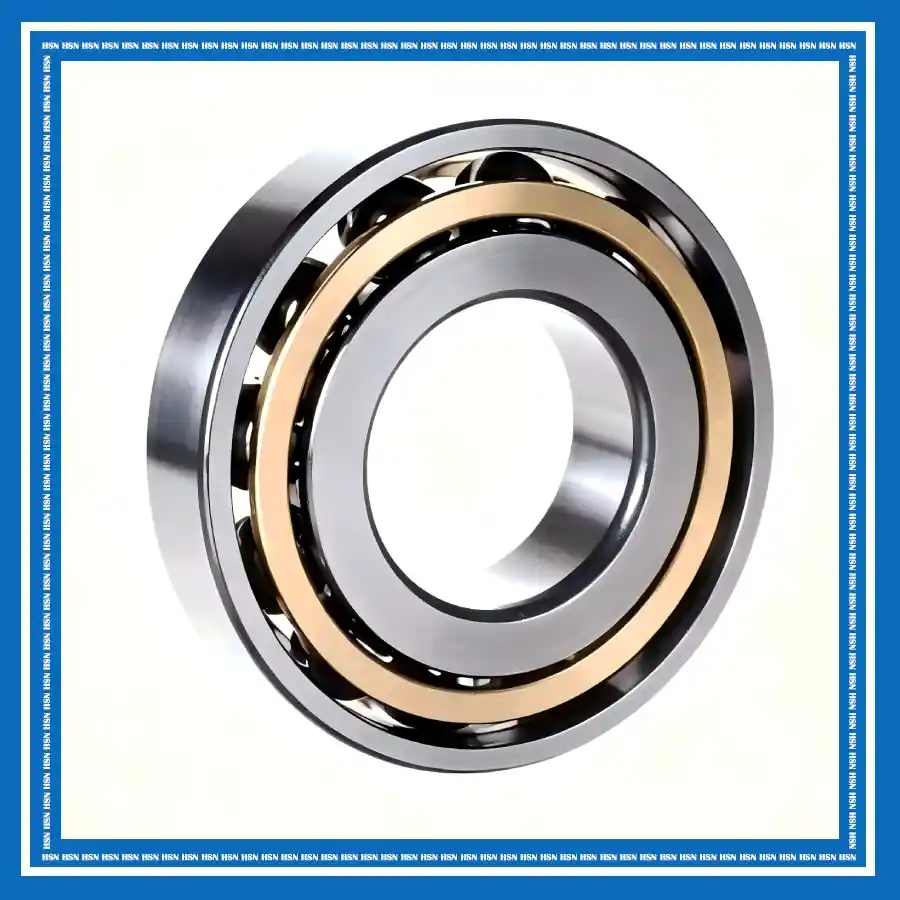

The 7407-B-XL-MP FAG angular contact ball bearing consists of an inner ring, an outer ring, balls, and a solid brass cage. The 40° contact angle provides high axial load capacity while supporting combined radial and axial loads. The X-life design improves load-carrying performance and service life, while the robust brass cage provides reliable ball guidance and stable operation under demanding conditions.
The 7407-B-XL-MP bearing is well suited for heavy industrial gearboxes, steel processing equipment, process machinery, and heavy-duty transmission systems. It is particularly suitable for applications requiring high axial load capacity, robust cage performance, combined load support, and reliable operation under demanding loads.
