820RX3263
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 820RX3263
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 820.000 mm 32.2835 in
Outer (D): 1130.000 mm 44.4882 in
Width (B): 650.000 mm 25.5906 in
Width (C): 650.000 mm 25.5906 in
DUR/DOR (F/E): 891.000 mm 35.0787 in
Weight: 2030.00 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C1) : 23200 KN
Static Radial Load Rating (C0): 52400 KN
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Cylindrical Roller Bearings Guide
Product Description

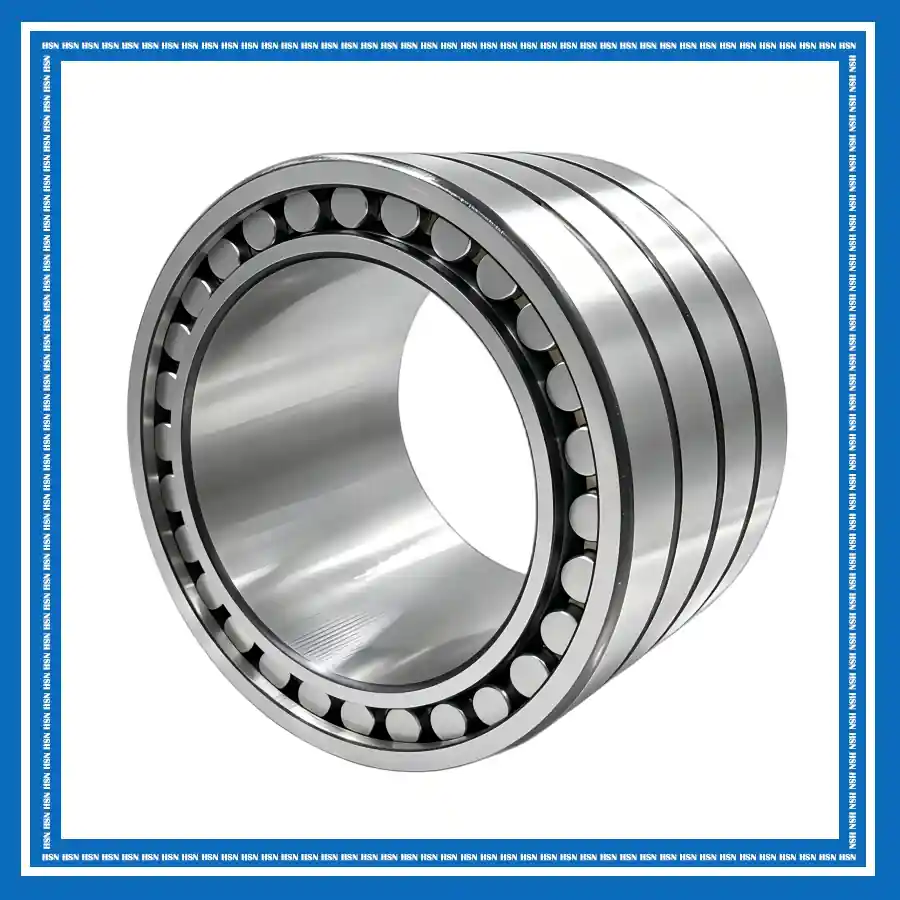

The 820RX3263 Timken four-row cylindrical roller bearing consists of inner and outer rings, four rows of cylindrical rollers, and cages. The four-row design provides high radial load capacity, excellent rigidity, and stable load distribution, making it suitable for heavy loads and continuous operation. These bearings are primarily used in rolling mill roll-neck applications, including hot rolling mills, cold rolling mills, and other steel rolling equipment, providing reliable support for work rolls and backup rolls under demanding rolling conditions.
