BAC5824
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: BAC5824
Reference Number: 466931
Reference Number: 507686A
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (B): 220 mm 8.6614 in
Outer (D): 300 mm 11.8110 in
Width (W): 38 mm 1.4961 in
Weight: 8 kg 17 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 160 KN 36000 lbs
Static Capacity (Co) : 225 KN 50500 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Angular Contact Ball Bearings Guide
Product Description

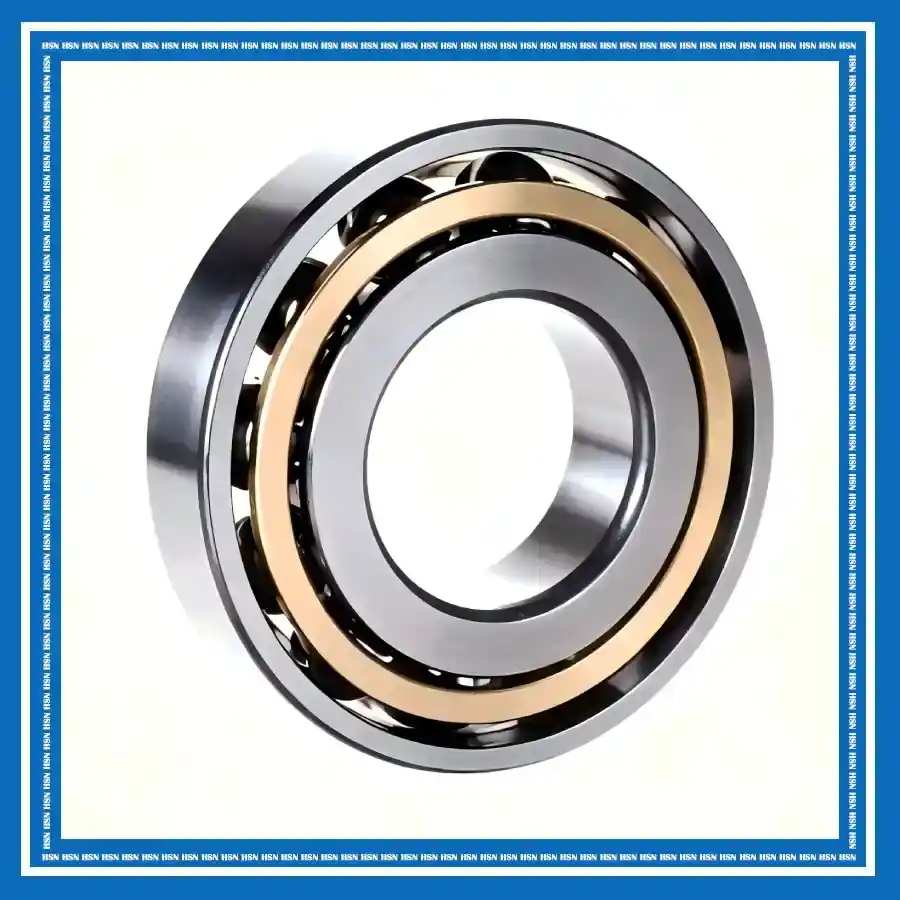

The American Roller Bearing BAC5824 angular contact ball bearing consists of inner and outer rings, precision steel balls, and a cage that provides reliable ball guidance and spacing. Its angular contact raceway design provides high rigidity and allows the bearing to support combined radial and axial loads while maintaining stable operation under demanding conditions. The precision internal geometry helps ensure smooth rotation and reliable load distribution. It is suitable for machine tools, industrial gearboxes, pumps, compressors, heavy-duty drives, and other industrial equipment requiring reliable combined load support.
