BAC5943D
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: BAC5943D
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (B): 250 mm 9.8425 in
Outer (D): 340 mm 13.3858 in
Width O.R. (W): 70 mm 2.7559 in
Width I.R. (Wi): 76 mm 2.9921 in
Weight: 19 kg 42 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 245 KN 55100 lbs
Static Capacity (Co) : 415 KN 93300 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Angular Contact Ball Bearings Guide
Product Description

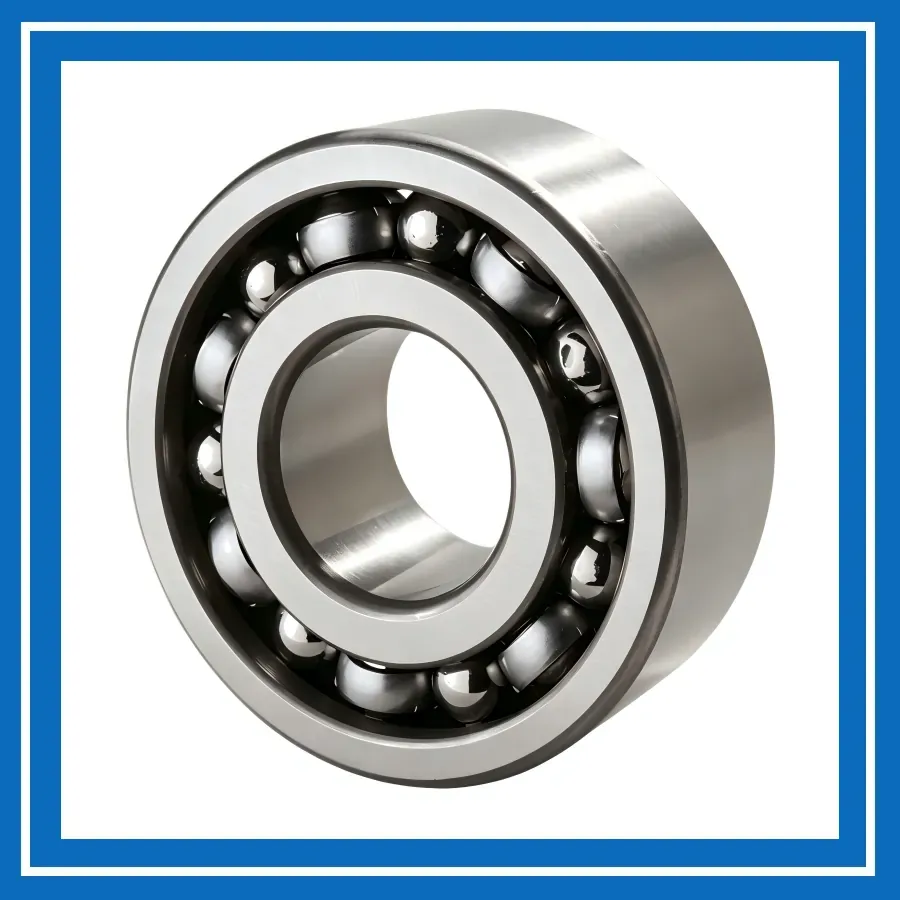

The American Roller Bearing BAC5943D double-row angular contact ball bearing consists of inner and outer rings, two rows of precision steel balls, and a cage that provides reliable ball guidance and spacing. Its double-row angular contact design enables the bearing to support radial loads and axial loads in both directions, while providing high rigidity and stable shaft positioning under demanding conditions. The robust structure and precise internal geometry ensure reliable operation and long service life. It is suitable for machine tools, industrial gearboxes, pumps, compressors, electric motors, and other industrial equipment requiring high load capacity and combined load support.
