Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: BAC7072
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (B): 360 mm 14.1732 in
Outer (D): 540 mm 21.2598 in
Width (W): 82 mm 3.2283 in
Weight: 63 kg 138 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 462 KN 103900 lbs
Static Capacity (Co) : 850 KN 191100 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Angular Contact Ball Bearings Guide
Product Description

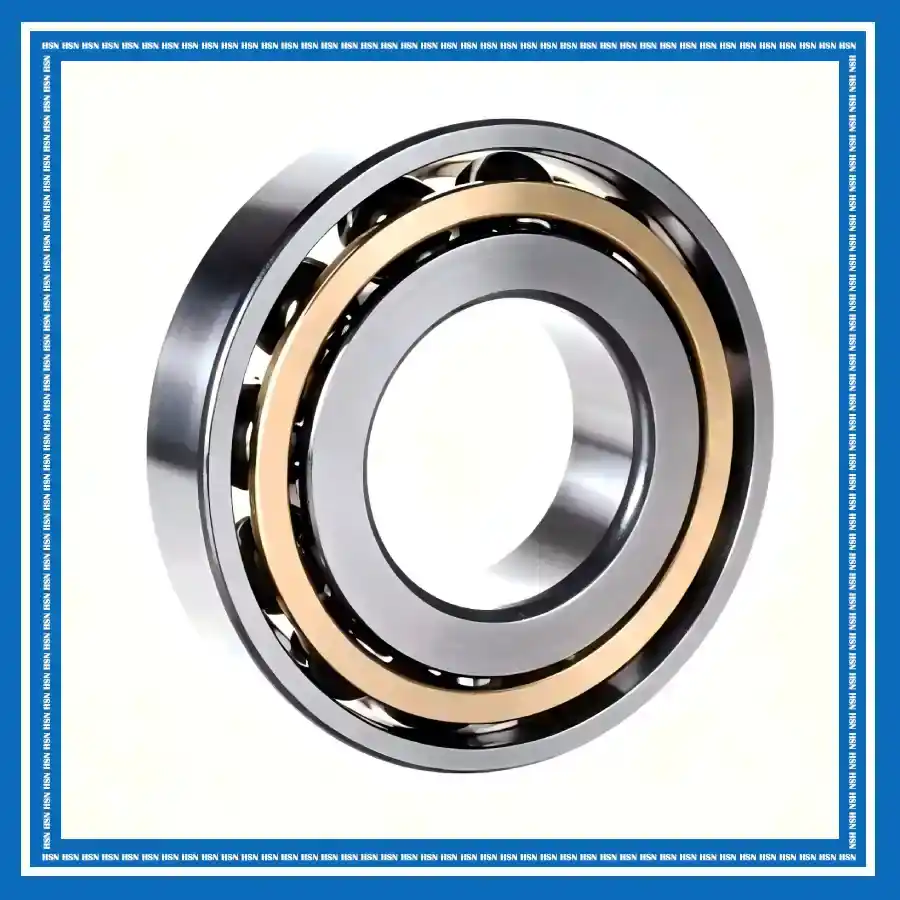

The American Roller Bearing BAC7072 angular contact ball bearing consists of inner and outer rings, precision steel balls, and a cage that provides reliable ball guidance and spacing. Its angular contact raceway design provides high rigidity and allows the bearing to support combined radial and axial loads while maintaining stable operation under demanding conditions. The precision internal geometry helps ensure smooth rotation and reliable load distribution. It is suitable for machine tools, industrial gearboxes, pumps, compressors, heavy-duty drives, and other industrial equipment requiring reliable combined load support.
